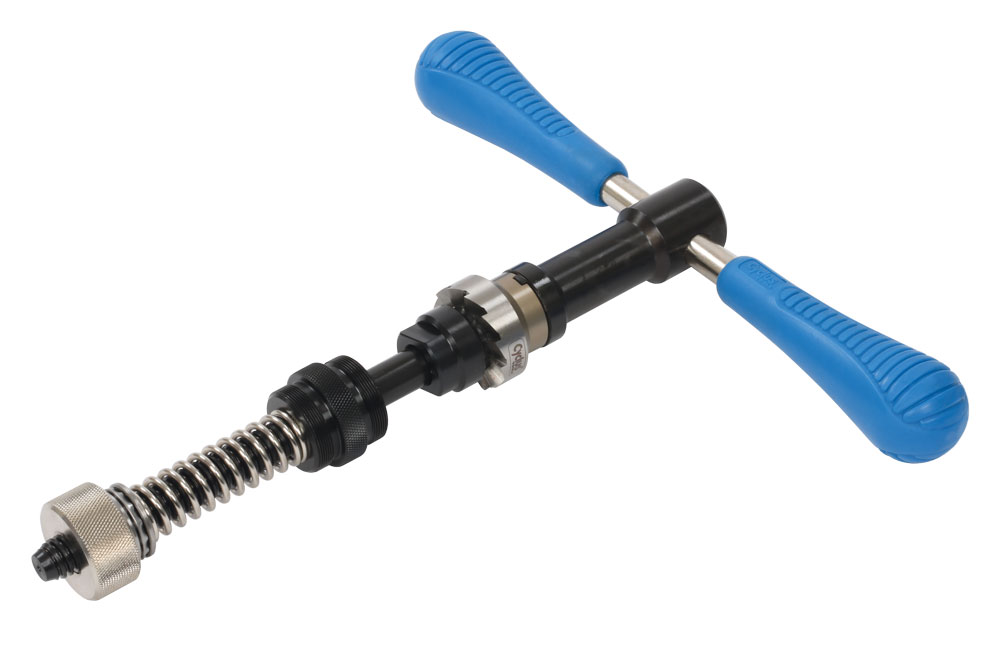

CYCLUS TOOLS bottom bracket shell facing cutter. With
the Cyclus Tools cutter you can clean up (face) the bottom bracket
shell faces to make them perfectly parallel to each other. This enables
the bottom bracket to be correctly mounted and the bearings to be
aligned.max. cutter diameter: 9mmmax. bottom bracket shell diameter: 44mmNote:Use the suitable guide bushing according to the thread (BSA / ITAL / French). In order to avoid overloading and / or slipping.It is necessary to apply uniform pressure on the cutter with the help of the guide, the spring and the threaded sleeve.Note: Make sure you use a suitable cutting oil for the material being faced!

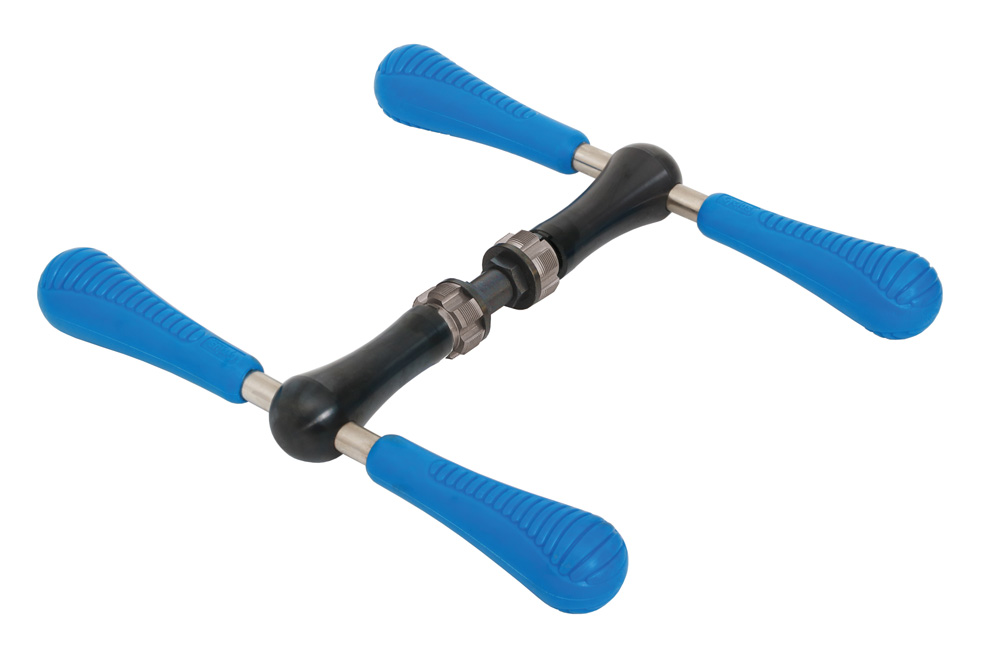

CYCLUS TOOLS complete bottom bracket threading tool BSA (1,370" x 24 tpi).With
the Cyclus Tools Threader for BSA (1,370" x 24 tpi) you'll generate an
optimal concentric bottom bracket thread. Insert both sides of the
threader tap simultaniously to avoid canting and damage to the existing
threadInner diameter of the scabbard holder: 16mm. Attention: Letters or marks on the tool refer to the tool itself, not the
left or right side of the bicycle (i.e. "R" on one side of the tool is
for chasing a classic right handed thread, so the tool must be turned
to the right (clockwise). The "L" side of the tool is for the left hand
thread of the bottom bracket shell, which must be turned to the left
counterclockwise)Use a cutting oil suitable for the material to be machined.

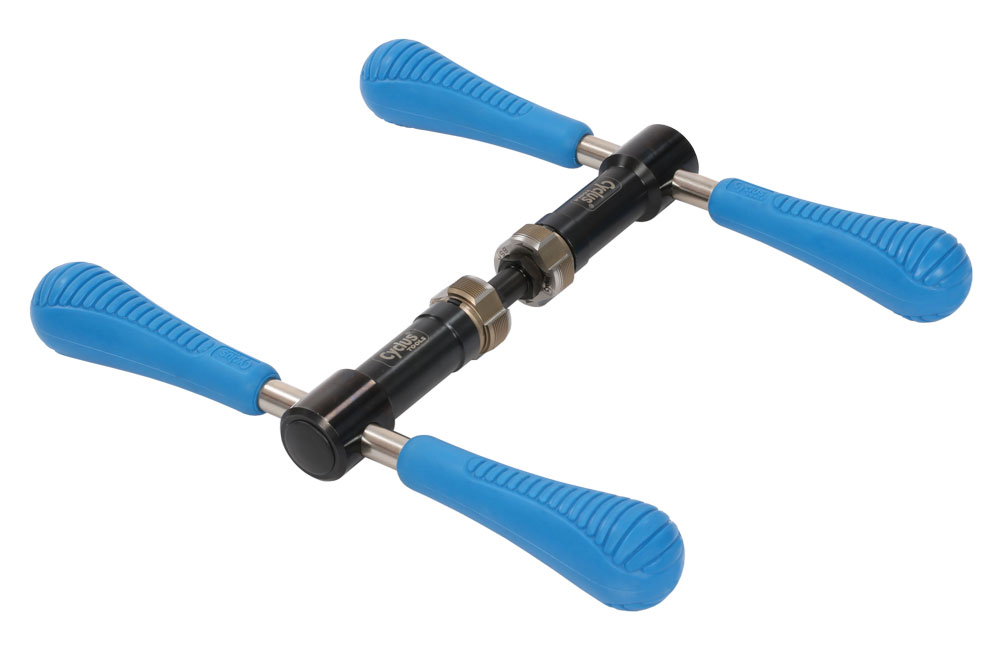

With
the Cyclus Tools Threader Professional for BSA (1,370" x 24 tpi) you'll
generate optimal concentricity of the bottom bracket's thread. Insert
both sides of the threader simultanly to avoid any canting. The usage of an appropriate cutting oil is necessary.Attention:
letters and marks on the tool refer to the tool itself, not the frame
(e.g. "R" means you have to turn the tool to the right, "L" means turn
to the left!)

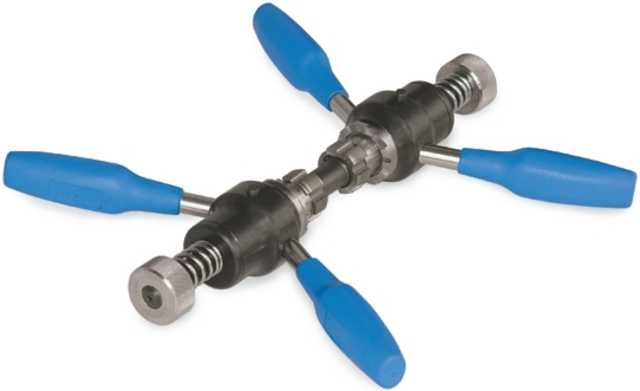

Product DescriptionCyclus Tools Cutting & milling tool for BSA threads is a professional tool specifically designed for recutting work on the bottom bracket thread and for milling work on the bottom bracket shell.After you have recut the thread, the cutting tool is disengaged and the face milling tool is used. You don't need to re-clamp the tool, ensuring 100% face milling of the bottom bracket shell treads. especially developed for recutting threads and facing of the bottom bracket housing.It combines the two operations in one process so changing or modification of the tools isn't necessary.Accurate facing of bottom bracket faces means the shells will be 100% parallel to each other and square to the threads. This is very important for bottom brackets with outer cups e.g. Campagnolo Ultra Torque, Shimano Hollowtech II. Benefits: two machining processes in one tool change is not required exact guide ensures parallel faced shells Please note: Letters or marks applied to the tool always refer to the tool itself. I.e. if an "R" is applied to one side, then this is a classic thread with the direction of rotation to the right - clockwise. If an "L" is applied, the direction of rotation is to the left - counterclockwise.It is not meant the application side with the bicycle, because there is no fixed reference system here!
Set details:a tap for the left pedal thread (milled ring below the tap holder) and a tap for the right pedal thread (no milled ring).Use a suitable tap wrench to recut the pedal thread (Cyclus Tools art. 720124).
CYCLUS TOOLS Stem Clamp.The use of the Cyclus Tools steerer clamp guarantees an exact angular cut when shortening the stem.Fasten the clamp in a vice and set the desired diameter.Determine the installation height of the headset used.Note the measurement on the clamp when clamping and cutting the stem to length.Please note that the stem clamp is not suitable for the carbon saw blade code: 720303. neccessary for 1" & 1 1/8" steer tube incl. Bushing insert
CYCLUS TOOLS single die 1 "- for 1" fork tube thread Cutting die for cutting or re-cutting fork tube threads for 1" fork assembly. Diameter: 1"It includes: die without die stock. So you need a die stock for a complete tool set! e.g. Cyclus Tools art. 720070, 720077.
CYCLUS TOOLS Handle for holiding fork tube cutter die.For cutting new threads during fork assembly.Includes: fork tube cutting handle (die clamp) - die cutter not included.Note: For a complete tool, the matching die (e.g. Art.No.: 720019; 720020) is also required.
CYCLUS TOOLS® tube cutter, including spare circular cutter blade.Makes light work of cleanly cutting circular metal seat posts, handlebards and other pipes/tubes. It is not necessary to clamp the part to be cut in a vice, cutting is achieved by rotating of the tool around the tube and gradually turning the black knob to press the cutting wheel inwards. Cutting normally only requires a few turns. Burrs are removed from the cut using with the integrated Noga countersink blade.- for tubes diameter 3-35 mm- cutting wheel for alloy and steel tubes- 4 guiding rolls, made of stainless steel- magnesium cast, therefore very light weight and solid- steel spring spindle- cutting wheel can be changed quickly, without tools- spare cutting wheel included in the turn knob- Noga countersink blade

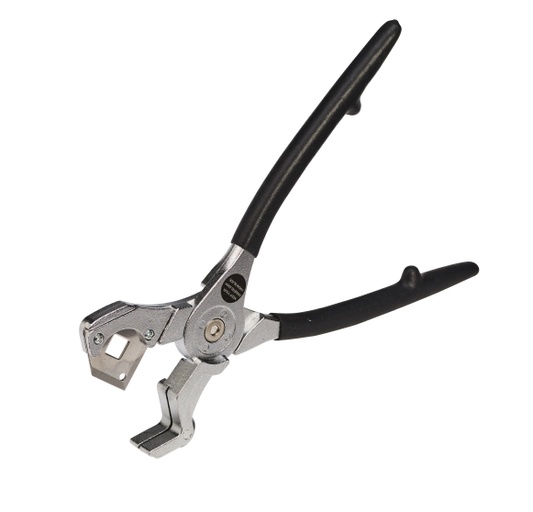

Special Elvedes pipe pliers for cutting of hydraulic lines. The
rod is easily through braided steel tubing and cuts faultlessly without
deforming the inner tube.

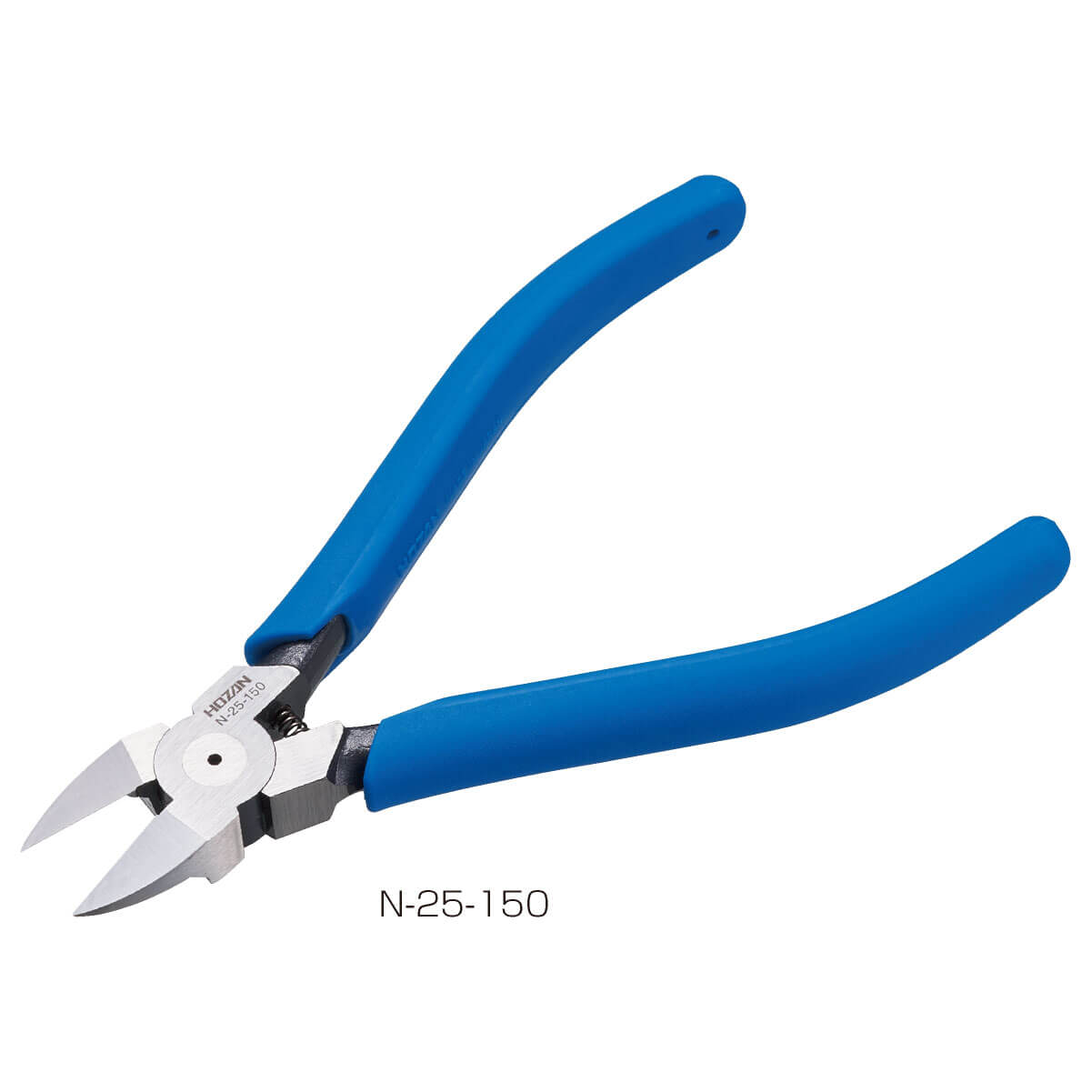

A tool for cutting spokes. Designed with a blade width of 8.6 mm, it can cut even sports cars with a narrow rim width in an assembled state.Also compatible with stainless spokes.
Spoke threading tool set only for No.13/14/15 round spoke.Applicable with stainless steel and steel spokes.It can perform “Easy First Bite” and very easy to make accurate threads.No.13/14/15 die heads are included as standard.* Do not process different sized thread than specified on each spoke.
Spoke threading tool set only for No.13/14/15 round spoke.Applicable with stainless steel and steel spokes.It can perform “Easy First Bite” and very easy to make accurate threads.No.13/14/15 die heads are included as standard.* Do not process different sized thread than specified on each spoke.

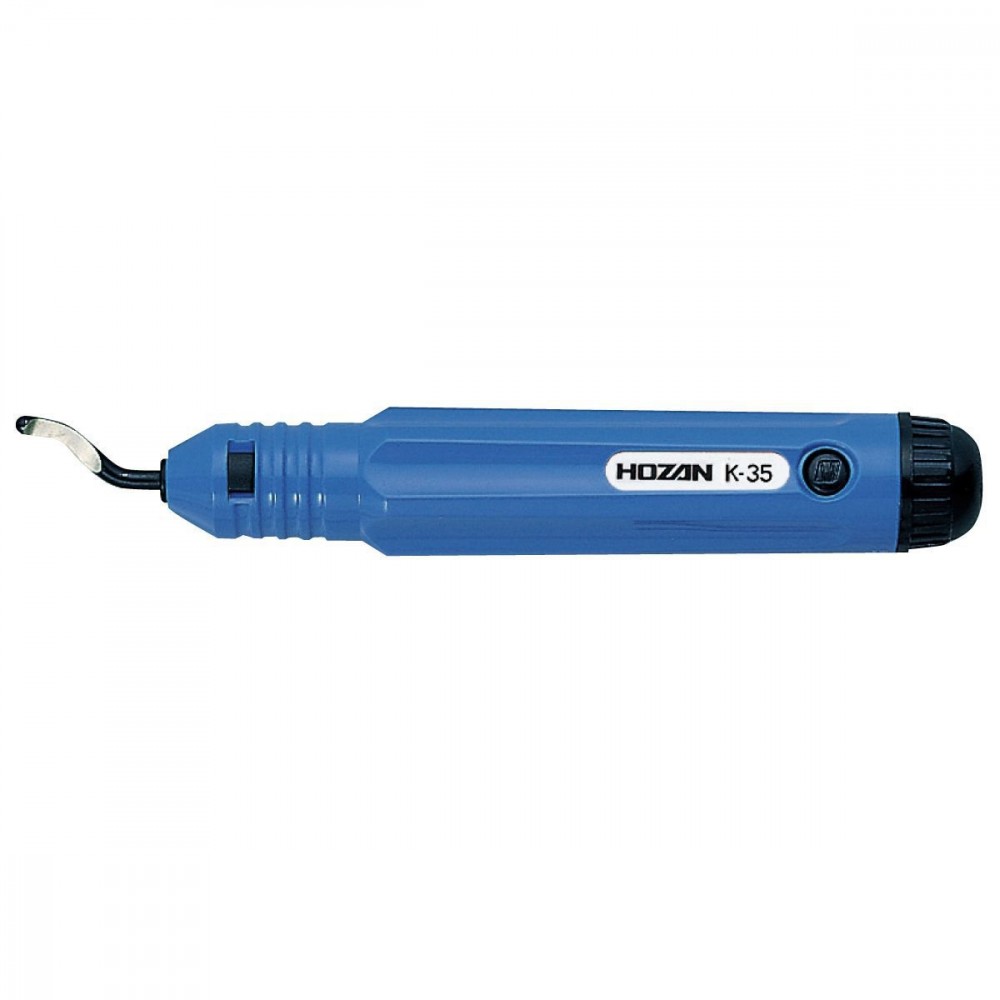

For de-burring the inside of a round hole or a tube, it is uniformly smoothed by gently cranking the scraper.Three types of blade are provided. They can be stored in the grip

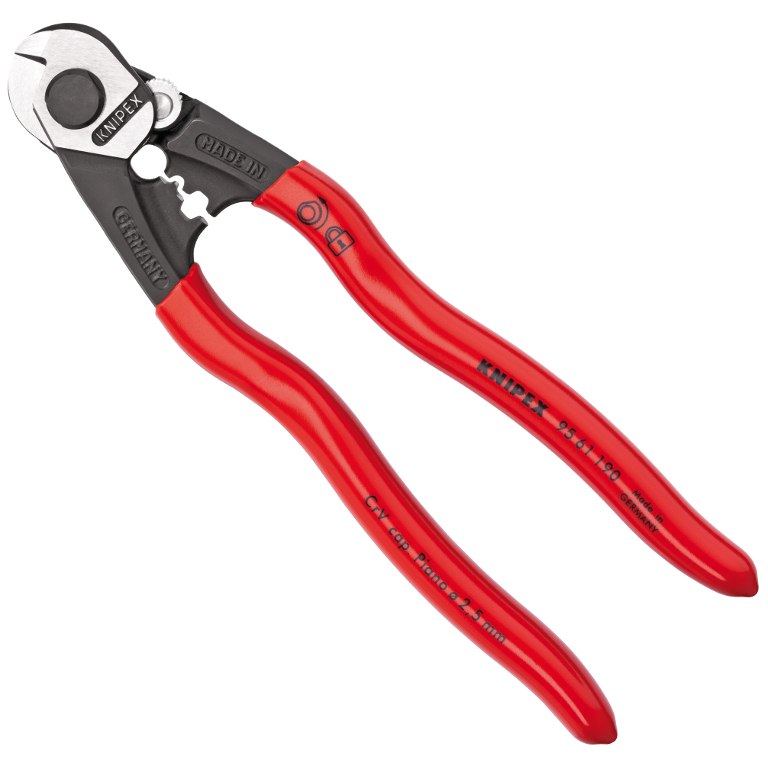

KNIPEX cutter and crimper- for cleanly cutting medium hard wire, cable, round thin steel bars- material hardness ca. 62 HRC- cuts cleanly without burrs- special blade geometry prevents the wire trands fraying- with opening spring and locking lever- cutting edges additionally induction hardened- cuts outer casings up to 6 mm diameter- also has cable crimping inserts

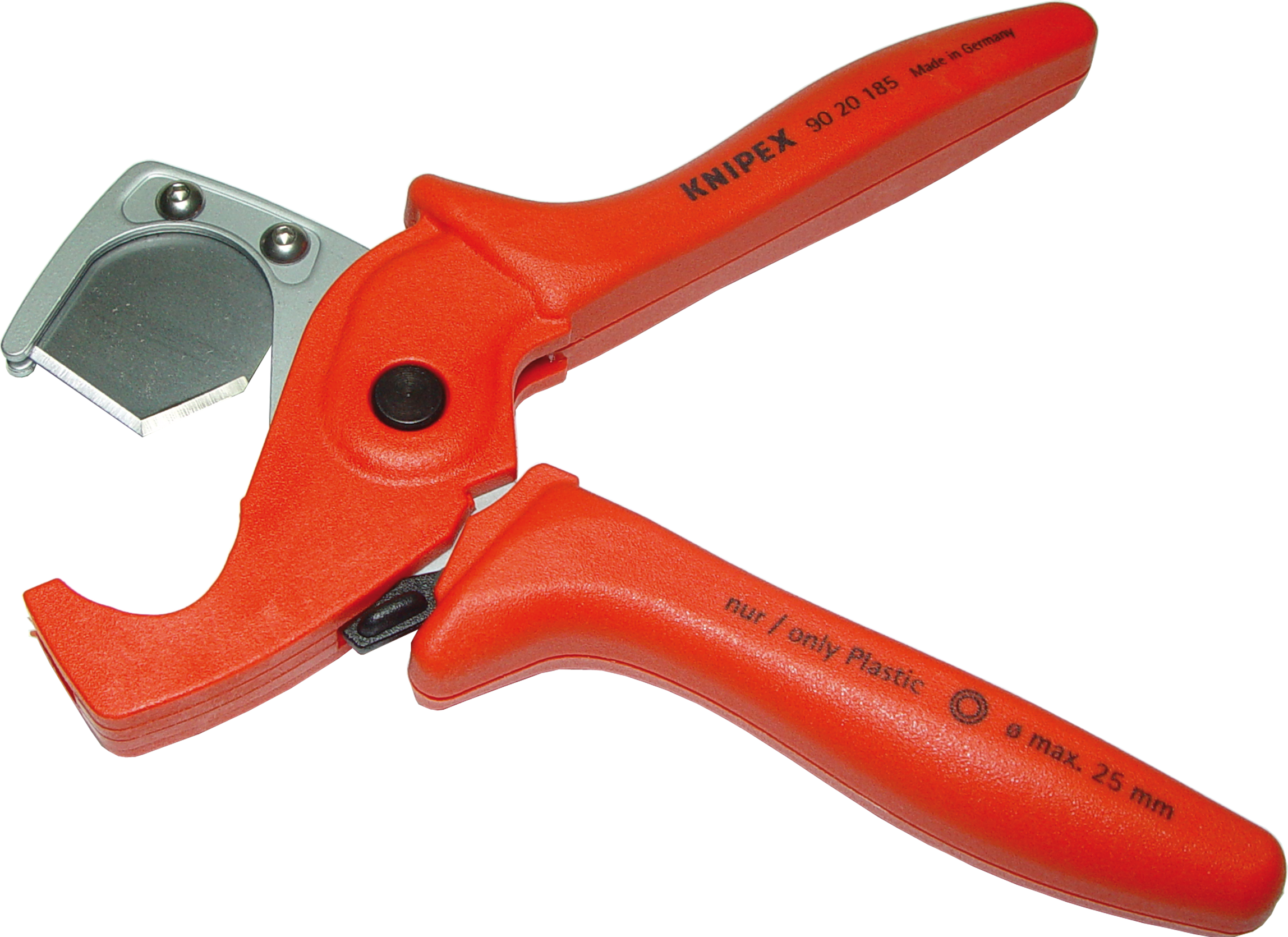

KNIPEX hose cutter for hydraulic brake lines, plastic handles.These hose cutters cleanely cut thin-walled plastic housed brake lines and cable conduits made of synthetic resin and rubber up to Ø 25 mm.Easy cutting action due to pivot and handle design.Cutter body is made of glass-fibre reinforced plastic. The cutting blade is made of interchangeable oil-hardened special steel.Locking safety lever to keep cutters closed when not in use.Note: not to be used for cutting steel braded brake lines or regular steel brake and cable outer cables.

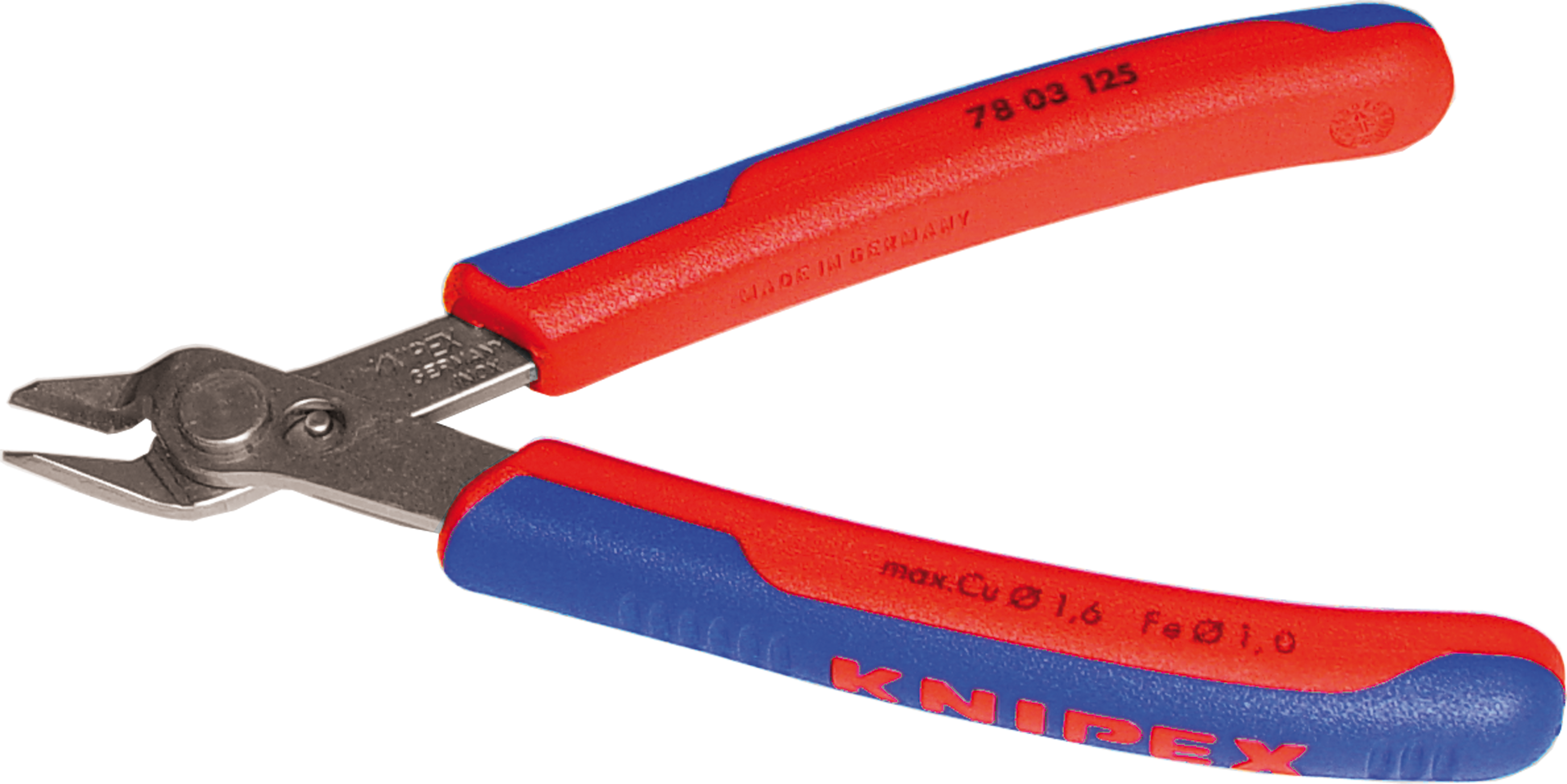

KNIPEX electronic super-knips, clippers for precision cutting work,Details:- precision pliers for the finest cutting work, e.g. in electronics and precision mechanics,- precision ground cutting edges without facet for flush cutting- cutting edge hardness approx. 54 HRC- precisely shaped tips also cut adjacent wires from 0.2 mm,- extremely smooth action for fatigue-free work due to joint design with INOX stainless steel rivet,- sprung opening action and opening limiter,- with wire clamp to hold wire in place during cutting,- rubber handles for better comfort and grip.
