Cyclus Tools Snap.in

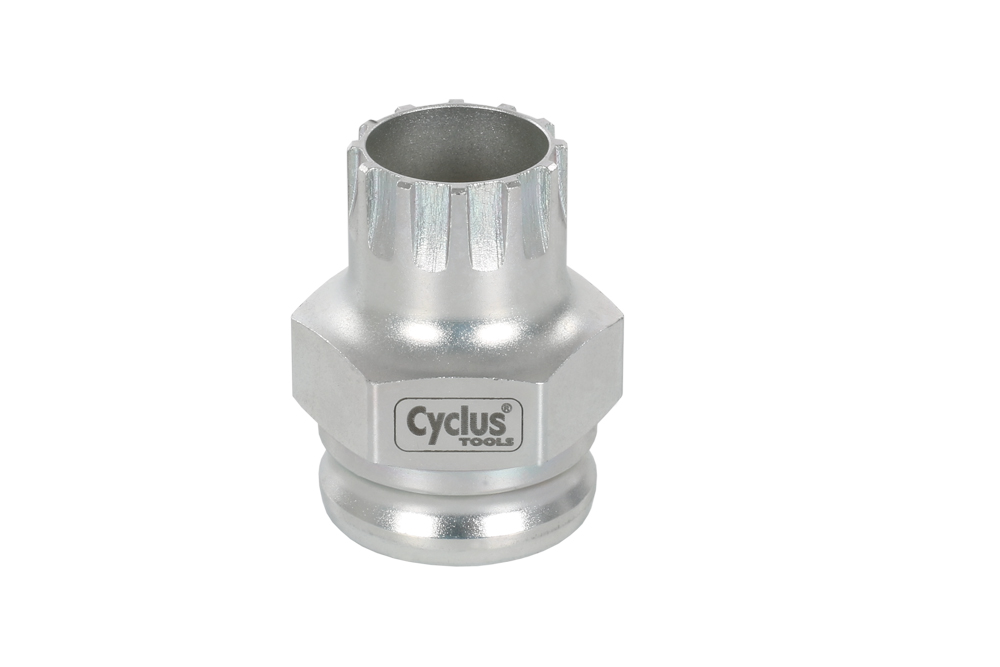

CYCLUS TOOLS snap.in bottom bracket tool, compatible with:    SHIMANO BB-UN 51/71/72    KINEX alloy    TECORA plasticFor a functional tool, you still need the holder art.no.:7202750 and, if necessary, additional components such as an adapter or a guide.With this combination of holder, puller and the matching guide, the professional and professional removal and mounting of the bottom bracket is possible without slipping and canting. Another advantage is that this guide can also be used with other tools in the snap.in family.Please observe the torque specified by the manufacturer for each inner bearing assembly.

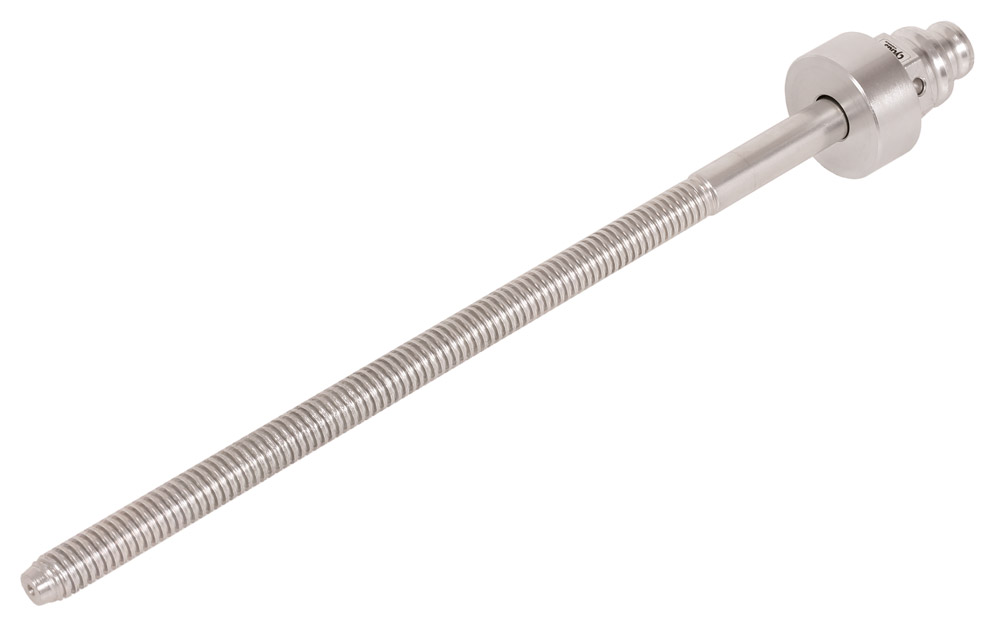

CYCLUS TOOLS snap.in headset pressing spindle.- length 480mmThe head set press spindle has got a trapezoid thread with 3 mm thread pitch. The long spindle length allows head set assembling on tall head tubes, e.g. in holland bikes.The spindle is one part of the snap.in tool and needs to be completed with press bushings art. 720955, quick release art. 720939 and tool holder art. 7202750.

CYCLUS TOOLS snap.in Head set press tool for 1" and 1 1/8" head sets.- Spindle length: 480mmFor a functional tool you still need the holder art. no.:7202750.The tool comes with quick release included, allowing faster and more effective working. Open the quick release, put it on the spindle, close and start pressing the head set into the head tube. The time consuming threading is no more needed.Complete the tool with another press bushing and be able to press 1 1/2" headsets as well. Exchange the bushing with art. 720954.

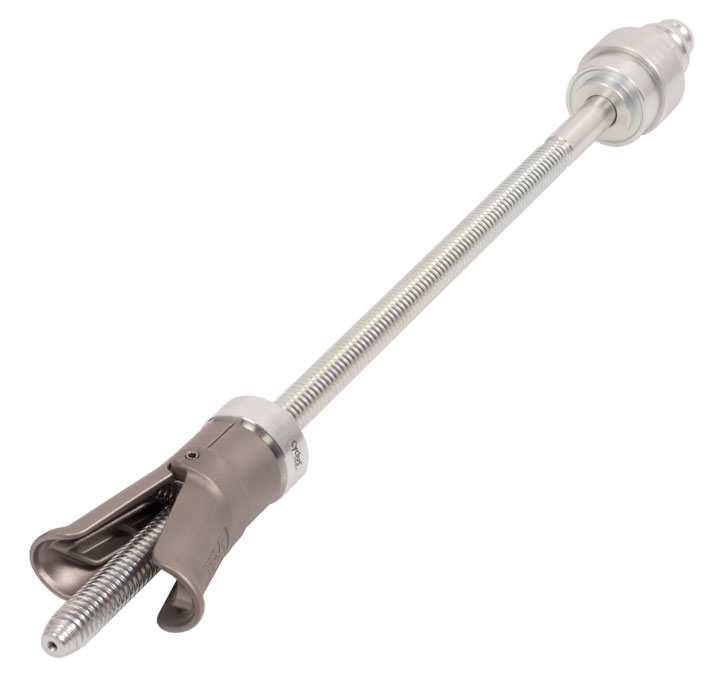

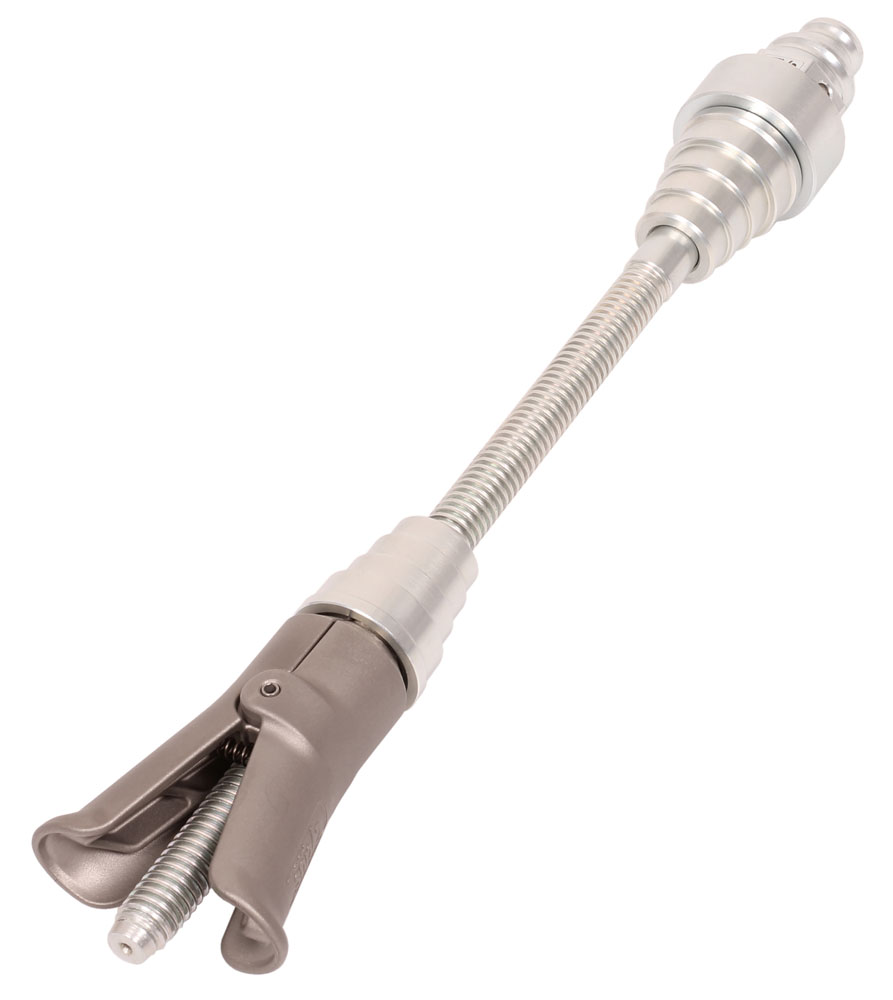

CYCLUS TOOLS snap.in bottom bracket press tool for Pressfit Shimano and FSA.The special feature of this tool is the CYCLUS TOOLS® quick release nut. Based on this, the pressing is much more effective, since the time-consuming screwing on and off of the threaded clamp is eliminated. Simply open the quick-release nut, push it onto the spindle, close it and the inner bearing / bearing cups can be pressed in. Suitable for all CYCLUS TOOLS® press-fit and milling tools.Furthermore, the press ring set for Shimano BB & FSA, consisting of 2 press rings, is included in this article.The continuous trapezoidal thread of the spindle and the effective operation of the quick-release nut allow the use for further press works on the bicycle. Simply re-equip this tool by swapping suitable press-in clamps with the ones provided here.For a functional tool you still need the holder item no. 7202750.

CYCLUS TOOLS snap.in bottom bracket puller tool, compatible with :- SHIMANO Hollowtech II (Führungsbolzen SN-73-F Art.-Nr.:7202773)- MICHE EVO Max (Führungsbolzen SN-73-F Art.-Nr.:7202773)- CAMPAGNOLO Ultra und Power Torque (Führungsbolzen SN-74-F Art.-Nr.:7202774)- SRAM GXP (Führungsbolzen SN-75-F Art.-Nr.:7202775)- SHIMANO Scheibenbremse Sicherungsring bei 20mm/15mm E-thru AchseFor a functional tool, you still need the holder art.no.:7202750 and, if necessary, additional components such as an adapter or a guide. It is recommended to use the snap.in guide bolt SN-73-F (part no.: 7202773), SN-74-F (part no.: 7202774) or the guide bolt SN-75-F (part no.: 7202775). With this combination of holder, puller and the appropriate guide, professional mounting and dismounting of the bottom bracket is possible without slipping and canting. Another advantage is that this guide can also be used with other tools in the snap.in family.Please observe the torque specified by the manufacturer for each inner bearing assembly.

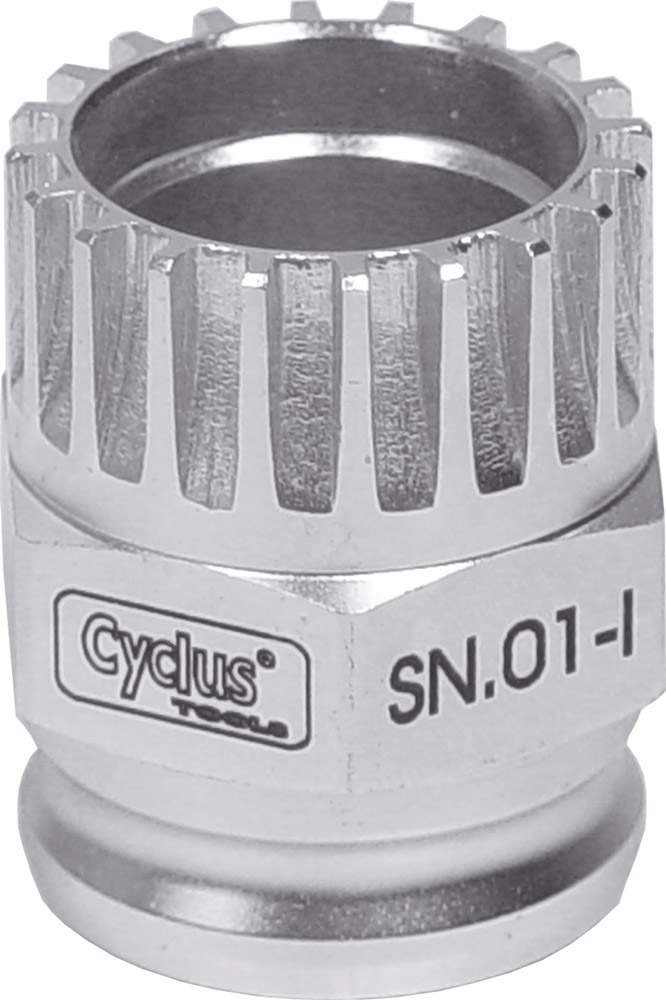

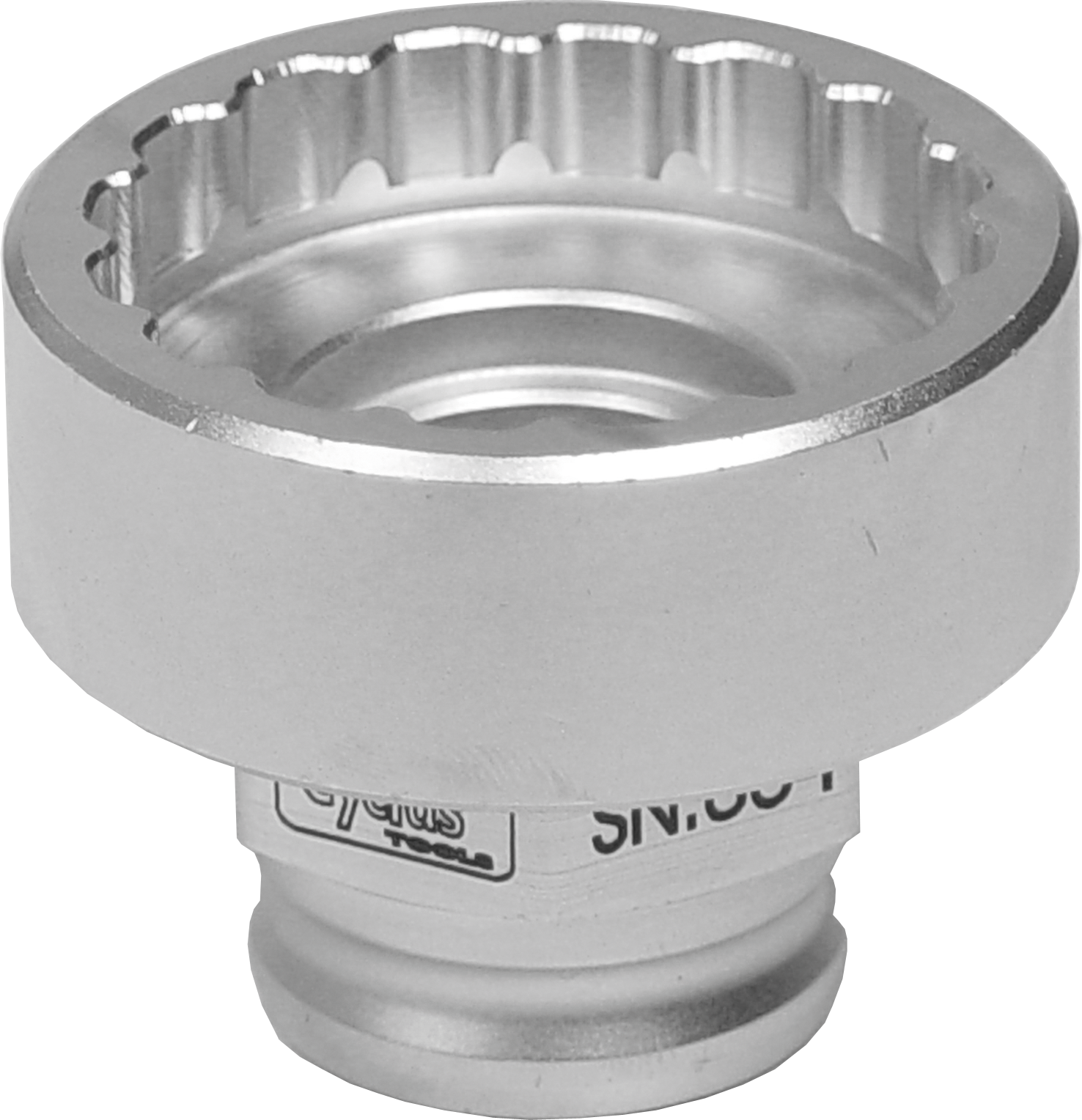

CYCLUS TOOLS snap.in - bottom bracket puller tool SN.01-I - compatible with:- Shimano Compact- Shimano BB-UN 51/71/72 (guide SN-70-F, code:7202770)- Kinex alloy (guide SN-70-F, code:7202770)- Tecora plastic (guide SN-70-F, code:7202770)- Shimano Octalink BB-7700/6500/5500 (guide SN-72-F, code:7202772)For a properly functioning tool you would need the basic holder, code 7202750 and additional components, such as adapter or guide.We recommend using the snap.in threaded guide SN-70-F (item no.: 7202770) or the Octalink guide bolt SN-73-F (item no.: 7202773). With this combination of holder, puller and the matching guide, professional removal and mounting of the bottom bracket is possible without slipping and canting. Another advantage is that this guide can also be used with other tools in the snap.in family.Please observe the torque specified by the manufacturer for each inner bearing assembly.

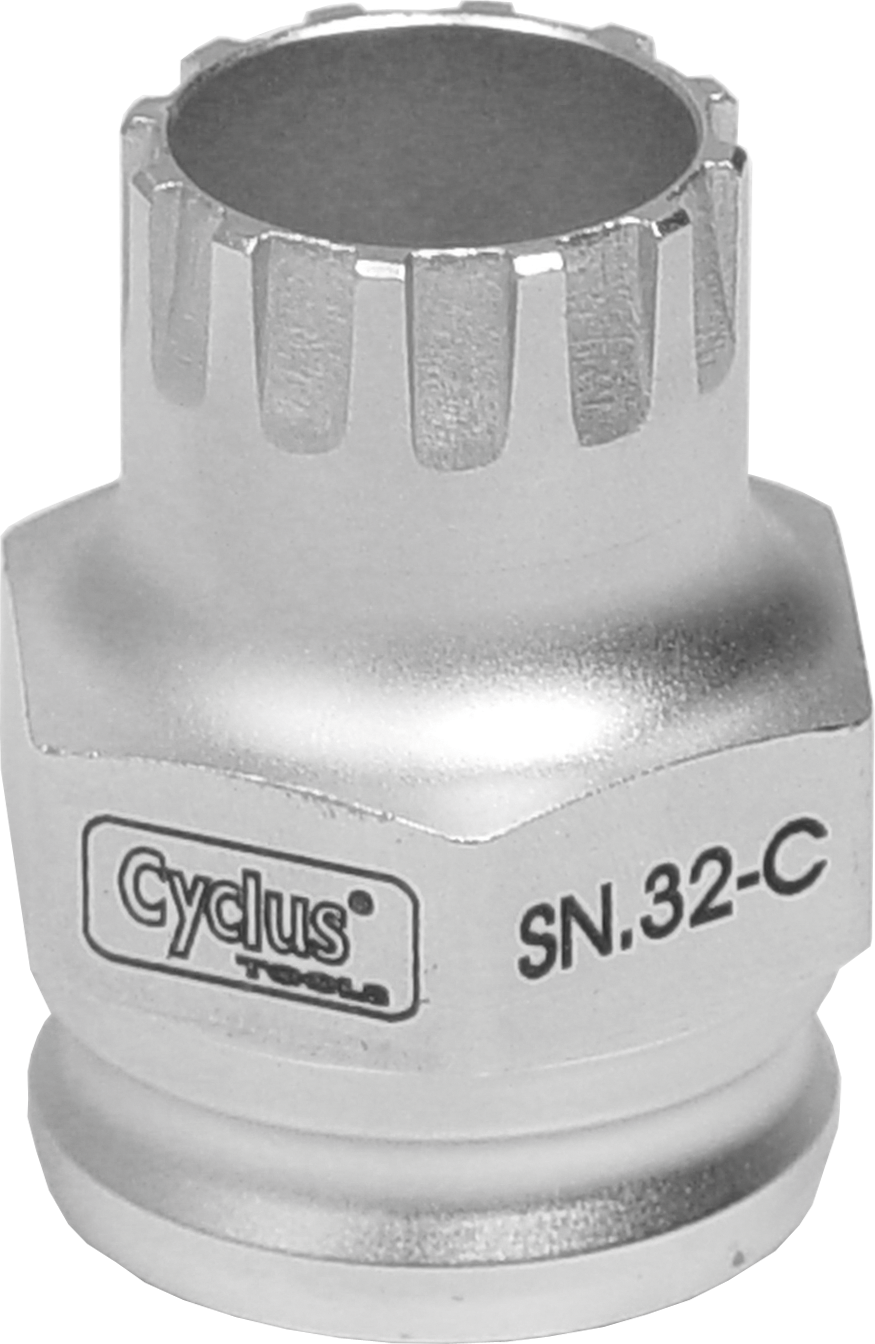

CYCLUS TOOLS snap.in cassette puller tool for Shimano | SN.32-C. Compatible with:- SHIMANO HG solid axle- SHIMANO HG hollow axle (guide bolt SN-76-F item no.:7202776)- SHIMANO Lock Ring for brake discs- MICHE Shimano (Guide bolt SN-76-F item no.:7202776)- MICHE Campagnolo (guide bolt SN-76-F item no.:7202776)For a functional tool, you still need the holder art.-Nr.:7202750 and, if necessary, additional components such as an adapter or guide.It is recommended to use the snap.in guide bolt SN-76-F (Art.-No.: 7202776). With this combination of holder, puller and the appropriate guide, professional assembly and disassembly of the cassette is possible without slipping and canting. Another advantage is that this guide can also be used with other tools of the snap.in family.Please observe the torque specified by the manufacturer for each assembly.

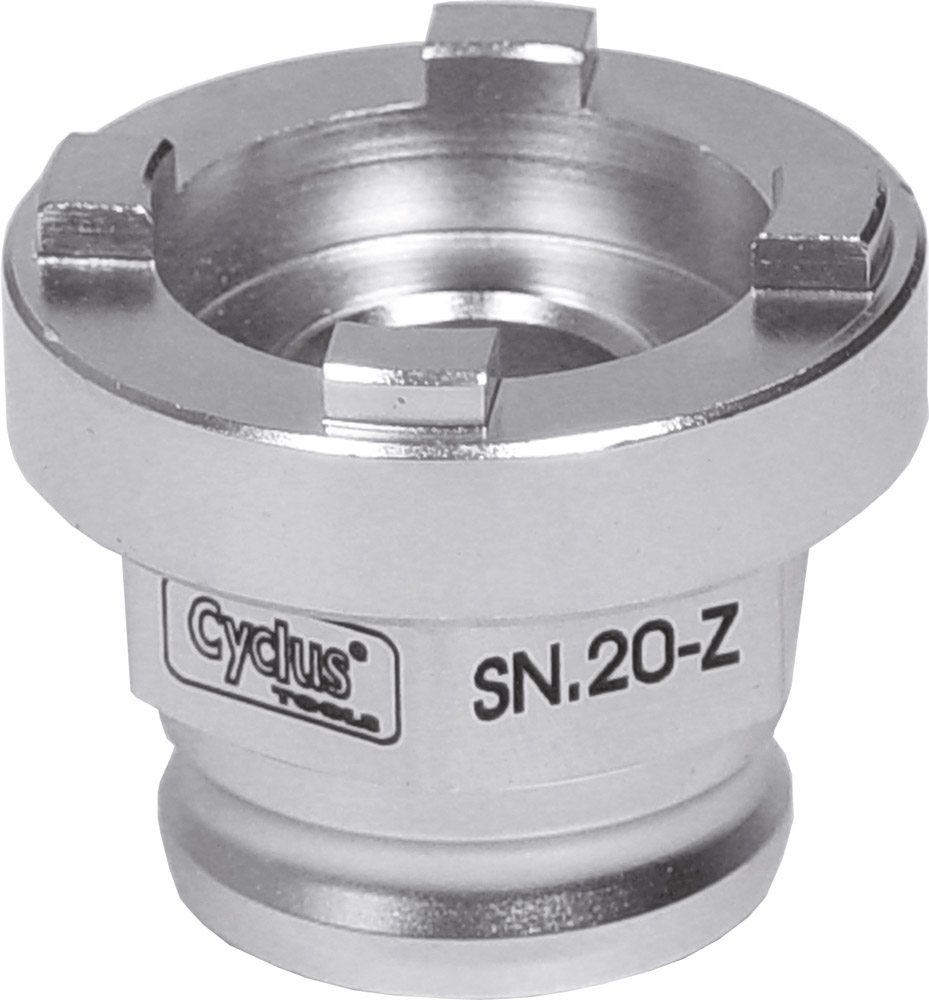

CYCLUS TOOLS snap.in freewheel puller tool, compatible with:- BMX freewheel sprocket with 4 slot, 16 mm axle | SN.20-ZFor a functional tool you still need the holder part no.:7202750 and possibly additional components such as an adapter or a guide.Please note the torque specified by the manufacturer for each assembly

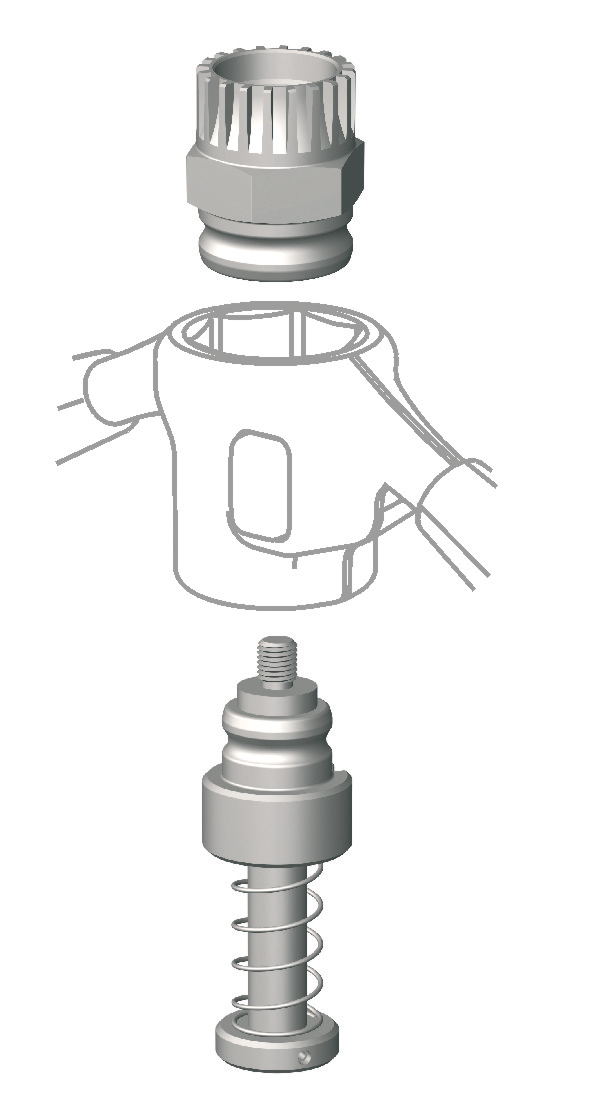

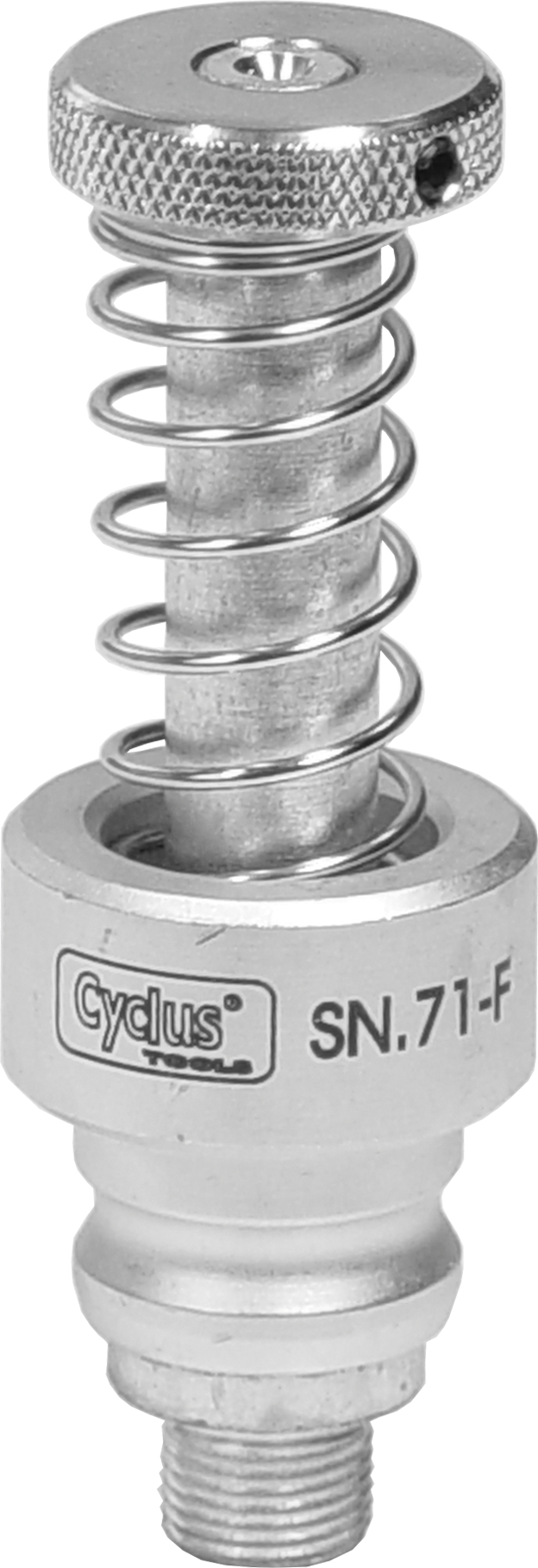

CYCLUS TOOLS snap.in guide bolt, compatible with:- any M8x1 thread- SHIMANO standard- KINEX- TECORA- CAMPAGNOLO square- MICHE track + Evolight- ISIS Drive- FAG- KSS Standard- TRUVATIV Power Spline- SHIMANO STePS electric motorThe right guide is indispensable for professional assembly and disassembly as it prevents slipping and component damage when using the tool. Another advantage is that this guide can also be used for other applications of the snap.in family. This means that the guide can be used on several tools, which saves both space and cost in the workplace.For a functional tool, you also need the holder art. no.:7202750 and the matching snap.in insert (ex. art. no.:7202701/7202709 ....).Please observe the torque specified by the manufacturer for each assembly.

CYCLUS TOOL snap.in guide bolt, compatible with:- any M12x1 thread- ISIS Drive- PANOSONIC electric motor - bottom bracket with Panasonic torque sensor- Bosch electric motor Classic/Classic+ LineThe right guide is indispensable for professional assembly and disassembly as it prevents slipping and component damage when using the tool. Another advantage is that this guide can also be used for other applications of the snap.in family. This means that the guide can be used on several tools, which saves both space and cost in the workplace.For a functional tool, you also need the holder art. no.:7202750 and the matching snap.in insert (ex. art. no.:7202701/7202709 ....).Please observe the torque specified by the manufacturer for each assembly.

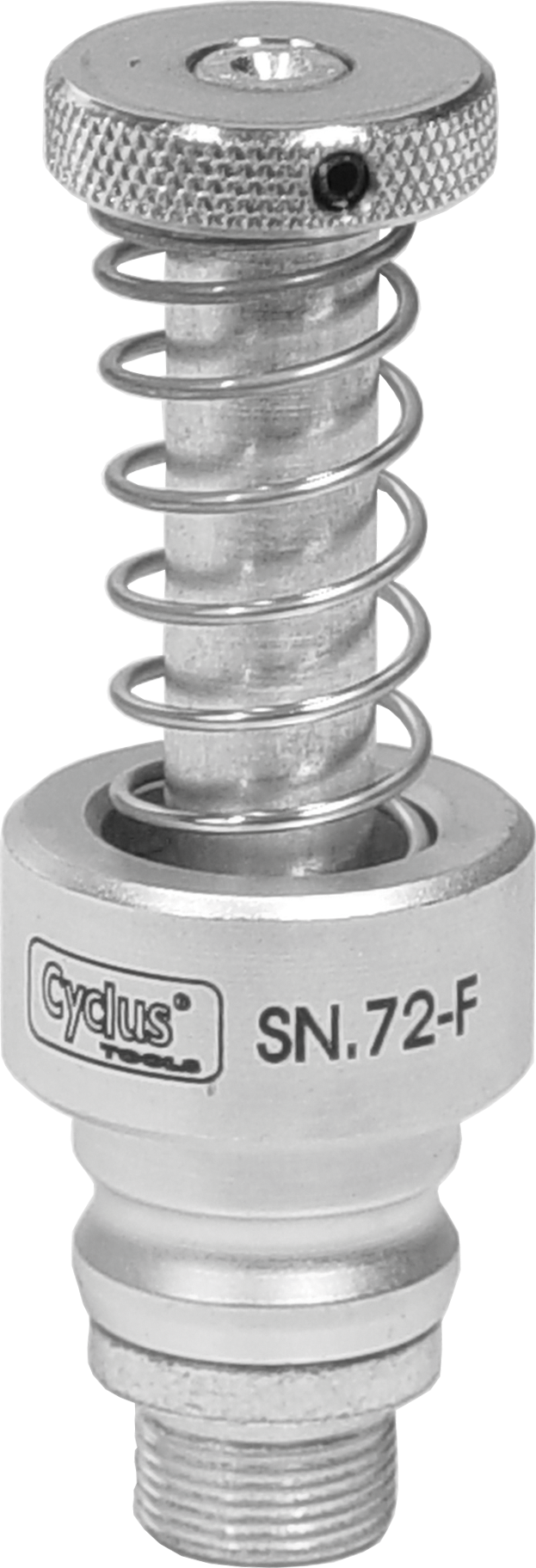

CYCLUS TOOLS snap.in guide bolt, compatible with:- any M15x1 thread- SHIMANO Octalink- SHIMANO BB-7700- ISIS Drive- TRUVATIV BB Gigapipe- Bosch electric motor Activ Line- Bosch electric motor Performance LineThe right guide is indispensable for professional assembly and disassembly as it prevents slipping and component damage when using the tool. Another advantage is that this guide can also be used for other applications of the snap.in family. This means that the guide can be used on several tools, which saves both space and cost in the workplace.For a functional tool, you also need the holder art. no.:7202750 and the matching snap.in insert (ex. art. no.:7202701/7202705 ....).Please observe the torque specified by the manufacturer for each assembly.

CYCLUS TOOLS Snap.in basic holder | Tool lever for all snap.in tools | SN.49-W.Leverage handle for all snap.in tool inserts and sockets. For fast, safe and powerful work. Ideal for quickly and safely carrying out many different assembly and disassembly tasks, e.g. on bottom brackets, cassettes and center-lock fastening rings.⦁ The plug-in system allows different variations of tool attachments (e.g. sockets for removing SRAM, Campagnolo or Shimano cassettes).⦁ Lever length 300mm⦁ innovative tools for all applications⦁ fast, precise and safe⦁ guides prevent the tool slipping off⦁ specific tasks are covered with special tools⦁ The tool system fits into a case and is perfect for mobile use⦁ high quality and dimensional accuracy⦁ manufactured in Europe⦁ constant new and further development⦁ tested by professionals

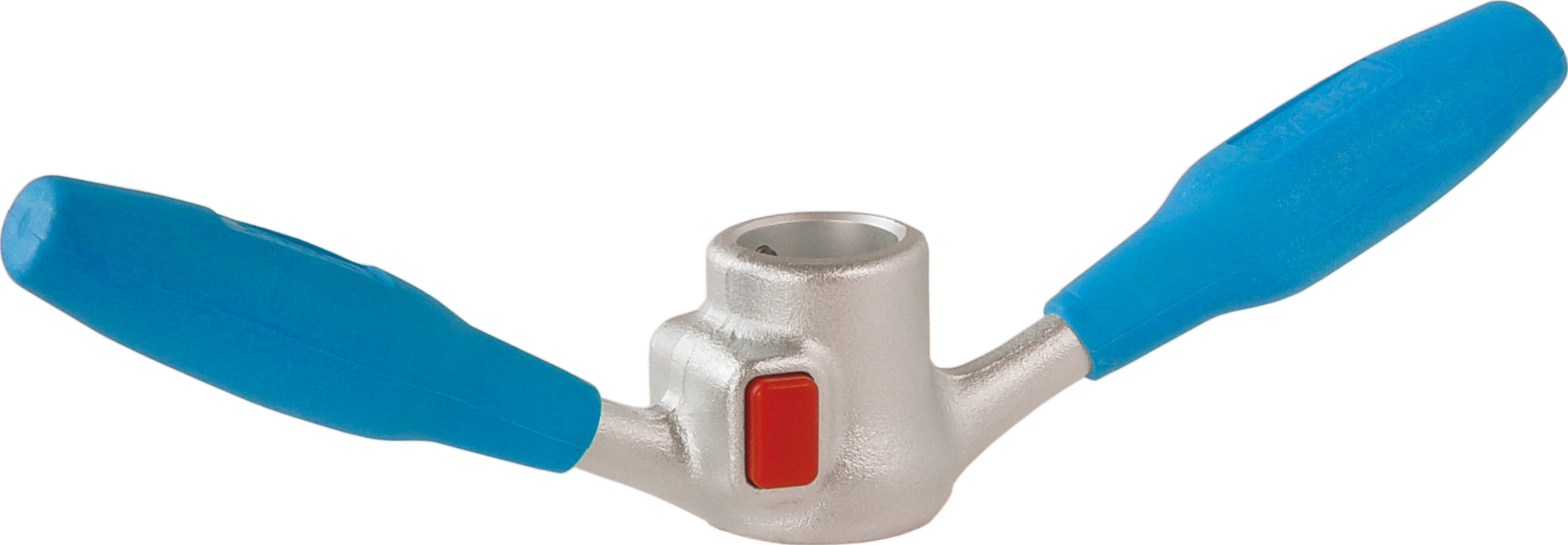

CYCLUS TOOLS snap.in holder/handleThe key component of the snap.in tool system, the universal holder/handle for all snap.in tool inserts.For fast, safe and professional work and optimal for many different assembly/disassembly tasks on bicycles, including: bottom brackets, sprockets, e-bike drives, headsets, etc. Can be extended as required and makes it possible to perform a wide variety of assembly/disassembly work using one single holder.This system is further expandable and future proof with the latest technology. Whenever SHIMANO, SRAM, CAMPAGNOLO or other manufacturers bring a new tool standard on the market, it is technically feasible for snap.in to integrate this tool in a timely manner.Another big advantage of the snap.in system is its compactness. With this system, it is possible to save considerable space in the workshop, which is especially valuable for mobile work stations.

CYCLUS TOOLS snap.in puller | for cassette Shimano | SN.35-C Compatible with:⦁ Shimano Centerlock brake discs with internal teeth / small 12 pitch.⦁ Shimano HG Cassette⦁ Mahle X Series Model X35Index: Z12 24,0 For a functional tool you still need the holder part no.: 7202750 and possibly additional components such as an adapter or a guide. this tool can be used safely and quickly with all common axle systems on the market (QR, solid axle, HH12, HH15, HH20). Simply change the guide and you're ready to go! And that without slipping and thereby injuring yourself. The optional guides for this are: ⦁ 7202778 - CYCLUS TOOLS snap.in guide bolt QR | for quick release | SN.78-F⦁ 7202779 - CYCLUS TOOLS snap.in guide solid axle | SN.79-F⦁ 7202796 - CYCLUS TOOLS snap.in guide bolt HH12 | for thru axles with 12 mm | SN.96-F⦁ 7202797 - CYCLUS TOOLS snap.in guide bolt HH15 | for thru axles with 15 mm | SN.97-F⦁ 7202798 - CYCLUS TOOLS snap.in guide bolt HH20 | for thru axles with 20 mm | SN.98-F Another advantage of this system, you decide. You can buy the guides when they are needed! This saves money and you are maximum flexibility. Please note the torque specified by the manufacturer for each assembly.

 CYCLUS TOOLS snap.in puller tool for hub threaded rings, compatible with:- DT Swiss hub threaded rings.In order to make the tool fully applicable, you will need the tool holder art. 7202750.For removing the threaded rings that secure the toothed lock washer (on the hub side). This loosening of the threaded rings is necessary when the timing belt pulley or ball bearing behind it are defective or worn and therefore need to be replaced.Note: You also find the fitting bearing in our shop (art. 390509 - 15 x 28 x 7 mm (dxDxB))If the bearing in behind of the threaded ring got divergent measurements, please take a look to our items from art. 390500 to 390511.Please note the torque specified by the manufacturer during each assembly.

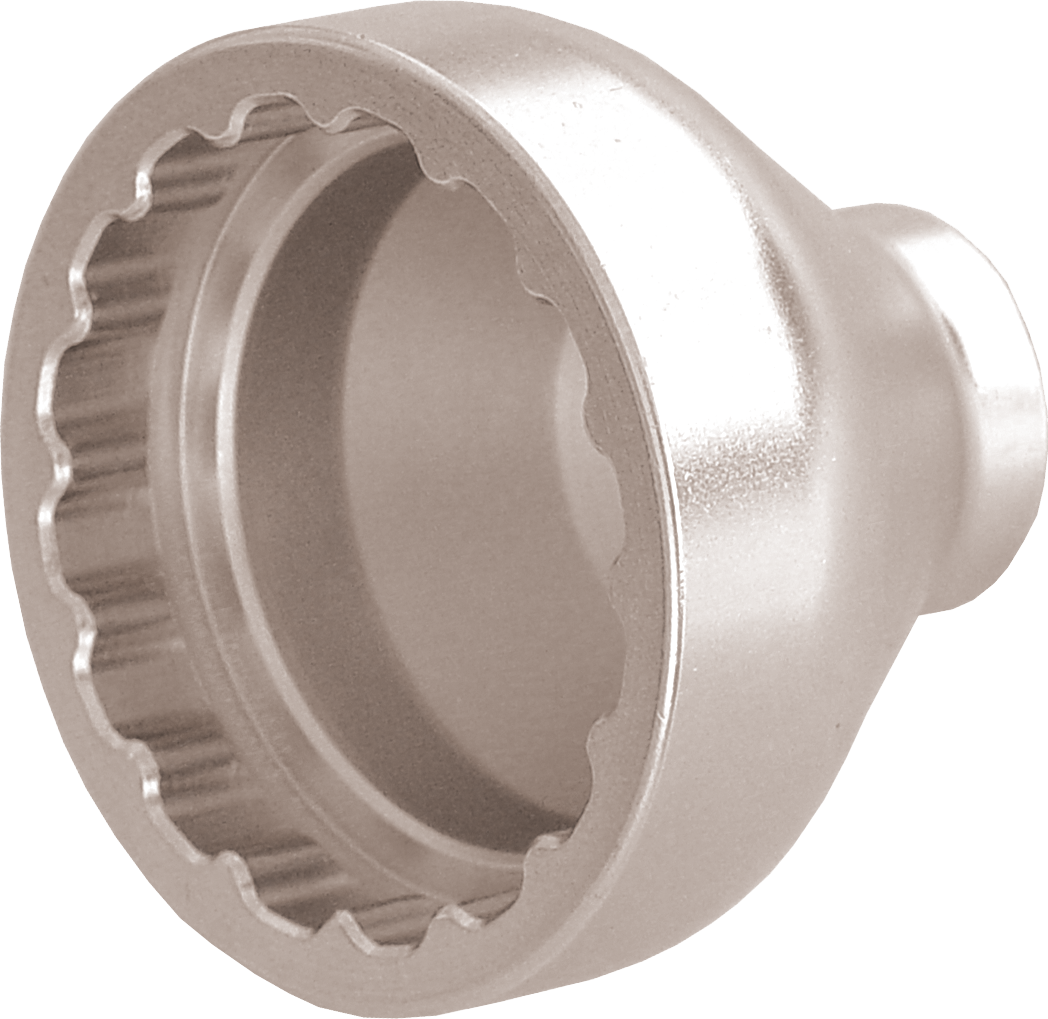

CYCLUS TOOLS Workshop bottom bracket tool CAMPAGNOLO P.T./U.T., Sram GXP and Miche Evo Max 3/8" drive

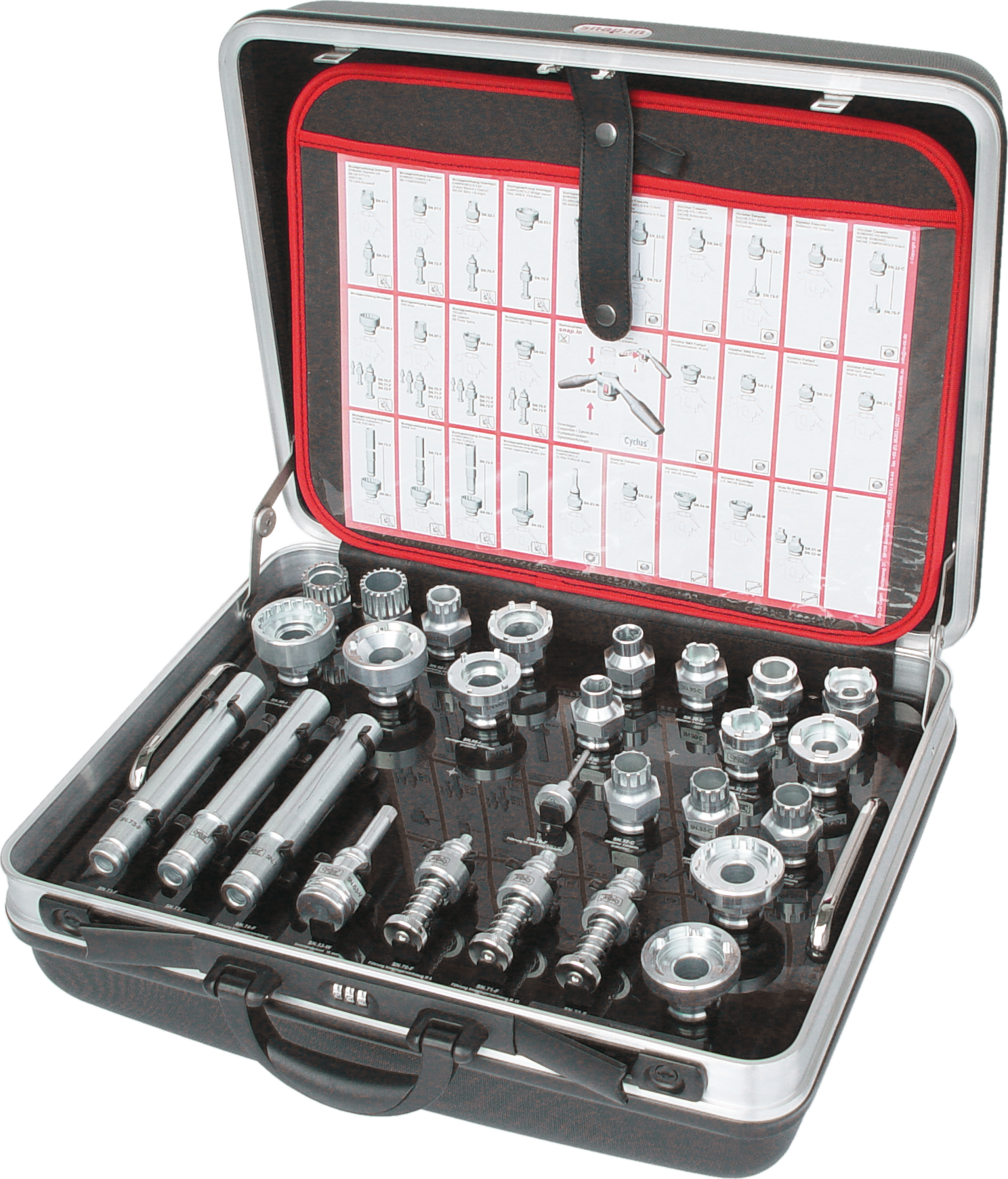

SNAP.IN tool case mounting of bottom brackets and cassettes, with tool holder, too inserts and clamp board.CYCLUS TOOLS complete case with clamping board for wall / hole wall mounting, suitable for all common axle systems and bottom brackets such as SHIMANO Standard, Octalink, Hollowtech II, TRUVATIV, FSA, ISIS, CAMPAGNOLO, ROHLOFF, etc.. including torque adapter.Can be expanded as desired with cutters, press-fit and e-bike tools.With the Cyclus tool case you have a variety of the appropriate Snap-in tools for the most diverse bottom bracket and cassette system ready to hand in a single conveineint and space saving case.All parts can also be obtained individually if something is lost or gets broken.Included in the set:    Snap In tools and holder    1x bottom bracket puller for SHIMANO Compact    1x bottom bracket puller for Campagnolo Cart    1x bottom bracket puller for FAG - Kinex - Kss Norm    1x bottom bracket puller for Shimano FC-M952/951/951    1x bottom bracket puller for Shimano BB-7700    1x bottom bracket puller for Shimano HT2 + Campa Ultra Torque    1x bottom bracket puller for ISIS Drive    1x bottom bracket puller conventional 36 mm bearings    1x puller for BMX freewheel for 16 mm axle    1x puller for BMX freewheel for 10 mm axle    1x puller for Rohloff sprocket    1x puller for Suntour 4 driver    1x puller bolt-on sprocket - Atom, Mailard, Regina, Suntour 4/5/6 speed    1x puller for Shimano cassettes    1x puller for Campagnolo cassettes - 8/9/10/11 speed    1x puller for cassette - Sachs PG + screw sprockets    1x holder for plug systems    1x nut for crank bolt 14 mm    1x nut for crank bolt 15 mm    1x hex wrench for Campa U.T. 10 mm    1x puller counter ring Miche track hub    1x puller pinion carrier Miche track hub    1x Guide bolt for bottom bracket M8x1    1x Guide bolt for botton bracket M12x1    1x Guide bolt for bottm bracket M15x1    1x Guide bolt for bottom bracket Shimano HT2    1x guide bolt for bottom bracket Campa U.T.    1x guide bolt for bottom bracket SRAM GXP    1x guide bolt for cassette with hollow axles    1x caseNote:The "Snap.in" system was developed to unify almost all of these tools into just one workshop case. The patented "Snap.in" system allows you to use all different variations of tool insert with only one tool holder/handle, e.g. for SRAM, CAMPAGNOLO or SHIMANO. Through its compactness the tool system is good for mobile use and space saving in your workshop.Case insert codes:    code 7202700    code 7202710    code 7202711    code 7202712    code 7202713    code 7202761    code 7202762    code 7202777    code 7202701    code 7202702    code 7202703    code 7202704    code 7202705    code 7202706    code 7202707    code 7202708    code 7202709    code 7202720    code 7202721    code 7202722    code 7202730    code 7202731    code 7202732    code 7202733    code 7202734    code 7202750    code 7202751    code 7202752    code 7202753    code 7202754    code 7202755    code 7202760    code 7202770    code 7202771    code 7202772    code 7202773    code 7202774    code 7202775    code 7202776    code 7202798

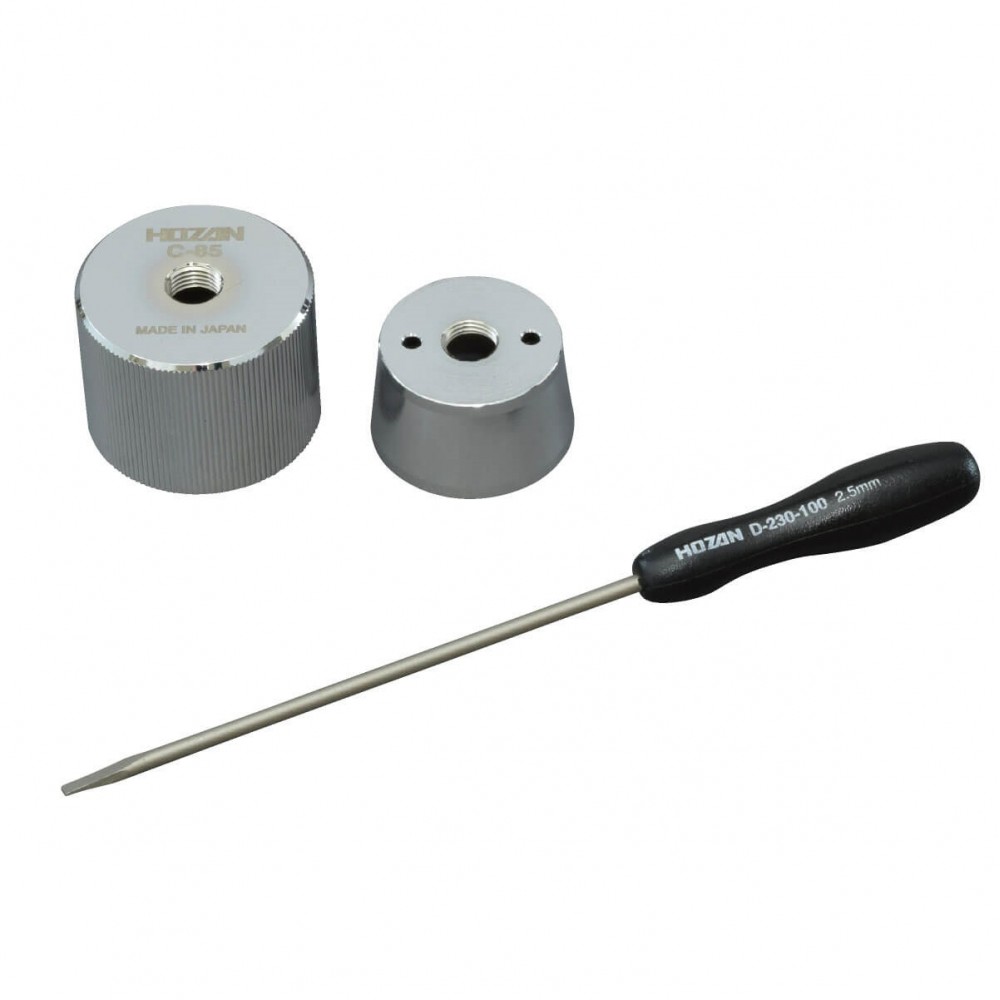

The tool kit for removing and installing snap rings which are securing sprockets in hub transmissions or rear wheels of ordinary bicycles.Removing/installing work became easy and certain.Snap ring pliers and such are unnecessary.Both snap rings are applicable, section of which are round and square.
