CYCLUS TOOLS snap.in bottom bracket press tool for Pressfit Shimano and FSA.The special feature of this tool is the CYCLUS TOOLS® quick release nut. Based on this, the pressing is much more effective, since the time-consuming screwing on and off of the threaded clamp is eliminated. Simply open the quick-release nut, push it onto the spindle, close it and the inner bearing / bearing cups can be pressed in. Suitable for all CYCLUS TOOLS® press-fit and milling tools.Furthermore, the press ring set for Shimano BB & FSA, consisting of 2 press rings, is included in this article.The continuous trapezoidal thread of the spindle and the effective operation of the quick-release nut allow the use for further press works on the bicycle. Simply re-equip this tool by swapping suitable press-in clamps with the ones provided here.For a functional tool you still need the holder item no. 7202750.
CYCLUS TOOLS snap.in bottom bracket puller tool, compatible with :- SHIMANO Hollowtech II (Führungsbolzen SN-73-F Art.-Nr.:7202773)- MICHE EVO Max (Führungsbolzen SN-73-F Art.-Nr.:7202773)- CAMPAGNOLO Ultra und Power Torque (Führungsbolzen SN-74-F Art.-Nr.:7202774)- SRAM GXP (Führungsbolzen SN-75-F Art.-Nr.:7202775)- SHIMANO Scheibenbremse Sicherungsring bei 20mm/15mm E-thru AchseFor a functional tool, you still need the holder art.no.:7202750 and, if necessary, additional components such as an adapter or a guide. It is recommended to use the snap.in guide bolt SN-73-F (part no.: 7202773), SN-74-F (part no.: 7202774) or the guide bolt SN-75-F (part no.: 7202775). With this combination of holder, puller and the appropriate guide, professional mounting and dismounting of the bottom bracket is possible without slipping and canting. Another advantage is that this guide can also be used with other tools in the snap.in family.Please observe the torque specified by the manufacturer for each inner bearing assembly.

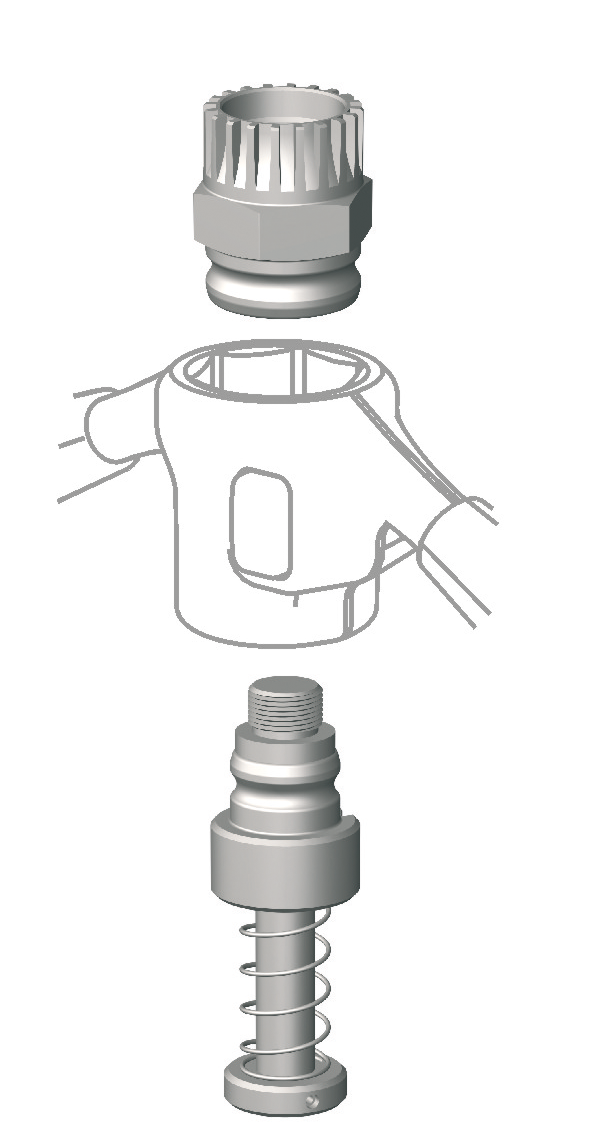

CYCLUS TOOLS snap.in - bottom bracket puller tool SN.01-I - compatible with:- Shimano Compact- Shimano BB-UN 51/71/72 (guide SN-70-F, code:7202770)- Kinex alloy (guide SN-70-F, code:7202770)- Tecora plastic (guide SN-70-F, code:7202770)- Shimano Octalink BB-7700/6500/5500 (guide SN-72-F, code:7202772)For a properly functioning tool you would need the basic holder, code 7202750 and additional components, such as adapter or guide.We recommend using the snap.in threaded guide SN-70-F (item no.: 7202770) or the Octalink guide bolt SN-73-F (item no.: 7202773). With this combination of holder, puller and the matching guide, professional removal and mounting of the bottom bracket is possible without slipping and canting. Another advantage is that this guide can also be used with other tools in the snap.in family.Please observe the torque specified by the manufacturer for each inner bearing assembly.
CYCLUS TOOLS snap.in cassette puller tool for Shimano | SN.32-C. Compatible with:- SHIMANO HG solid axle- SHIMANO HG hollow axle (guide bolt SN-76-F item no.:7202776)- SHIMANO Lock Ring for brake discs- MICHE Shimano (Guide bolt SN-76-F item no.:7202776)- MICHE Campagnolo (guide bolt SN-76-F item no.:7202776)For a functional tool, you still need the holder art.-Nr.:7202750 and, if necessary, additional components such as an adapter or guide.It is recommended to use the snap.in guide bolt SN-76-F (Art.-No.: 7202776). With this combination of holder, puller and the appropriate guide, professional assembly and disassembly of the cassette is possible without slipping and canting. Another advantage is that this guide can also be used with other tools of the snap.in family.Please observe the torque specified by the manufacturer for each assembly.
CYCLUS TOOLS snap.in guide bolt, compatible with:- any M8x1 thread- SHIMANO standard- KINEX- TECORA- CAMPAGNOLO square- MICHE track + Evolight- ISIS Drive- FAG- KSS Standard- TRUVATIV Power Spline- SHIMANO STePS electric motorThe right guide is indispensable for professional assembly and disassembly as it prevents slipping and component damage when using the tool. Another advantage is that this guide can also be used for other applications of the snap.in family. This means that the guide can be used on several tools, which saves both space and cost in the workplace.For a functional tool, you also need the holder art. no.:7202750 and the matching snap.in insert (ex. art. no.:7202701/7202709 ....).Please observe the torque specified by the manufacturer for each assembly.
CYCLUS TOOL snap.in guide bolt, compatible with:- any M12x1 thread- ISIS Drive- PANOSONIC electric motor - bottom bracket with Panasonic torque sensor- Bosch electric motor Classic/Classic+ LineThe right guide is indispensable for professional assembly and disassembly as it prevents slipping and component damage when using the tool. Another advantage is that this guide can also be used for other applications of the snap.in family. This means that the guide can be used on several tools, which saves both space and cost in the workplace.For a functional tool, you also need the holder art. no.:7202750 and the matching snap.in insert (ex. art. no.:7202701/7202709 ....).Please observe the torque specified by the manufacturer for each assembly.
CYCLUS TOOLS snap.in guide bolt, compatible with:- any M15x1 thread- SHIMANO Octalink- SHIMANO BB-7700- ISIS Drive- TRUVATIV BB Gigapipe- Bosch electric motor Activ Line- Bosch electric motor Performance LineThe right guide is indispensable for professional assembly and disassembly as it prevents slipping and component damage when using the tool. Another advantage is that this guide can also be used for other applications of the snap.in family. This means that the guide can be used on several tools, which saves both space and cost in the workplace.For a functional tool, you also need the holder art. no.:7202750 and the matching snap.in insert (ex. art. no.:7202701/7202705 ....).Please observe the torque specified by the manufacturer for each assembly.
CYCLUS TOOLS snap.in holder/handleThe key component of the snap.in tool system, the universal holder/handle for all snap.in tool inserts.For fast, safe and professional work and optimal for many different assembly/disassembly tasks on bicycles, including: bottom brackets, sprockets, e-bike drives, headsets, etc. Can be extended as required and makes it possible to perform a wide variety of assembly/disassembly work using one single holder.This system is further expandable and future proof with the latest technology. Whenever SHIMANO, SRAM, CAMPAGNOLO or other manufacturers bring a new tool standard on the market, it is technically feasible for snap.in to integrate this tool in a timely manner.Another big advantage of the snap.in system is its compactness. With this system, it is possible to save considerable space in the workshop, which is especially valuable for mobile work stations.
CYCLUS TOOLS snap.in puller tool for hub threaded rings, compatible with:- DT Swiss hub threaded rings.In order to make the tool fully applicable, you will need the tool holder art. 7202750.For removing the threaded rings that secure the toothed lock washer (on the hub side). This loosening of the threaded rings is necessary when the timing belt pulley or ball bearing behind it are defective or worn and therefore need to be replaced.Note: You also find the fitting bearing in our shop (art. 390509 - 15 x 28 x 7 mm (dxDxB))If the bearing in behind of the threaded ring got divergent measurements, please take a look to our items from art. 390500 to 390511.Please note the torque specified by the manufacturer during each assembly.
SNAP.IN tool case mounting of bottom brackets and cassettes, with tool holder, too inserts and clamp board.CYCLUS TOOLS complete case with clamping board for wall / hole wall mounting, suitable for all common axle systems and bottom brackets such as SHIMANO Standard, Octalink, Hollowtech II, TRUVATIV, FSA, ISIS, CAMPAGNOLO, ROHLOFF, etc.. including torque adapter.Can be expanded as desired with cutters, press-fit and e-bike tools.With the Cyclus tool case you have a variety of the appropriate Snap-in tools for the most diverse bottom bracket and cassette system ready to hand in a single conveineint and space saving case.All parts can also be obtained individually if something is lost or gets broken.Included in the set: Snap In tools and holder 1x bottom bracket puller for SHIMANO Compact 1x bottom bracket puller for Campagnolo Cart 1x bottom bracket puller for FAG - Kinex - Kss Norm 1x bottom bracket puller for Shimano FC-M952/951/951 1x bottom bracket puller for Shimano BB-7700 1x bottom bracket puller for Shimano HT2 + Campa Ultra Torque 1x bottom bracket puller for ISIS Drive 1x bottom bracket puller conventional 36 mm bearings 1x puller for BMX freewheel for 16 mm axle 1x puller for BMX freewheel for 10 mm axle 1x puller for Rohloff sprocket 1x puller for Suntour 4 driver 1x puller bolt-on sprocket - Atom, Mailard, Regina, Suntour 4/5/6 speed 1x puller for Shimano cassettes 1x puller for Campagnolo cassettes - 8/9/10/11 speed 1x puller for cassette - Sachs PG + screw sprockets 1x holder for plug systems 1x nut for crank bolt 14 mm 1x nut for crank bolt 15 mm 1x hex wrench for Campa U.T. 10 mm 1x puller counter ring Miche track hub 1x puller pinion carrier Miche track hub 1x Guide bolt for bottom bracket M8x1 1x Guide bolt for botton bracket M12x1 1x Guide bolt for bottm bracket M15x1 1x Guide bolt for bottom bracket Shimano HT2 1x guide bolt for bottom bracket Campa U.T. 1x guide bolt for bottom bracket SRAM GXP 1x guide bolt for cassette with hollow axles 1x caseNote:The "Snap.in" system was developed to unify almost all of these tools into just one workshop case. The patented "Snap.in" system allows you to use all different variations of tool insert with only one tool holder/handle, e.g. for SRAM, CAMPAGNOLO or SHIMANO. Through its compactness the tool system is good for mobile use and space saving in your workshop.Case insert codes: code 7202700 code 7202710 code 7202711 code 7202712 code 7202713 code 7202761 code 7202762 code 7202777 code 7202701 code 7202702 code 7202703 code 7202704 code 7202705 code 7202706 code 7202707 code 7202708 code 7202709 code 7202720 code 7202721 code 7202722 code 7202730 code 7202731 code 7202732 code 7202733 code 7202734 code 7202750 code 7202751 code 7202752 code 7202753 code 7202754 code 7202755 code 7202760 code 7202770 code 7202771 code 7202772 code 7202773 code 7202774 code 7202775 code 7202776 code 7202798
The tool kit for removing and installing snap rings which are securing sprockets in hub transmissions or rear wheels of ordinary bicycles.Removing/installing work became easy and certain.Snap ring pliers and such are unnecessary.Both snap rings are applicable, section of which are round and square.
₹5,500.00*
