To Detach The Cap, Insert Tip Of Sharp Pointed Tool To The Recess Between Cap And Pedal Body (Shown On The Photograph As Red Point), Then Lever Out The Cap Gently.. Please Be Careful Not To Scratch Pedal Or Your Own Body.To Attach The Cap, Adjust Small Protrusion Of The Cap And Recess Of The Body, Then Push Into The Position.
We set out to design a pedal that can be used for all types of cycling. We knew it needed it have a large platform, replaceable pins, our triple sealed bearing, while still being lightweight.We present to you the MKS Allways: Any road (or path), all of the time.The Allways pedal is available in a Silver or Black shot blasted finish, and comes with our standard 9/16th axle or with our EZ Superior system: perfect for folding bikes, or those who need to put their bicycle in a bag to take the bicycle with them (Rinko bag)• The large diameter low profile molded lugs and replaceable stainless-steel bolts give fantastic grip while minimizing damage to the soles of shoes.• Concave shape fits the curve of shoes, proving a stable foot position and excellent stability.• The MKS Triple sealed bearing system provides extremely smooth rotation enabling comfortable & efficient pedaling.• Shot blasted finish gives the Allways a stylish appearance.
MKS Allways: Any road (or path), all of the time
We set out to design a pedal that can be used for all types of cycling. We knew it needed it have a large platform, replaceable pins, our triple sealed bearing, while still being lightweight. We wanted to be able to remove this pedal to take our bikes with us when we travel, so we added our Ezy Superior axle to it.
The patented Ezy Superior system allows for safe, rapid, and tool-less removal of pedals for travel, storage, or flexibility. Particularly popular as an upgrade for folding bicycles, those who take their bikes on mass transit, or travel bikes with coupler systems our Ezy superior system can dramatically improve ride quality while saving space. We present to you the MKS Allways Ezy Superior: Any road (or path), all of the time.
The Allways pedal is available in a Silver or Black shot blasted finish, and comes with our standard 9/16th axle or with our EZ Superior system: perfect for folding bikes, or those who need to put their bicycle in a bag to take the bicycle with them (Rinko bag) • The large diameter low profile molded lugs and replaceable stainless-steel pins give fantastic grip while minimizing damage to the soles of shoes. • Concave shape fits the curve of shoes, proving a stable foot position and excellent stability. • The MKS Triple sealed bearing system provides extremely smooth rotation enabling comfortable & efficient pedaling. • Shot blasted finish gives the Allways a stylish appearance.
The AR-2 is a modern quill style road pedal. The AR-2’s features a unique asymmetrical cage plate design that allows for additional inboard clearance at the quill for wide shoes when compared to traditional pedals such as the Sylvan Road. The AR-2 is designed to be used to be used with toe clips and straps.The AR-2 is also available with our Ezy quick release axle system. The Ezy system allows for safe, rapid, and tool-less removal of pedals for travel, storage, or flexibility. Particularly popular as an upgrade for folding bicycles, those who take their bikes on mass transit, or travel bikes with coupler systems our Ezy system can dramatically improve ride quality while saving space.
This custom 108mm long wrench is designed to remove the dust cap from BM-7, Sylvan series , and Sylvan Prime series of pedals. To adjust or rebuild the pedals first you'll need to remove the dust cap to gain access to the lock nut and cone. This is exact tool for the job.Weight of a pair ※For PRIME SYLVAN ROAD、PRIME SYLVAN TRACK、PRIME SYLVAN TOURING、SYLVAN ROAD、SYLVAN TRACK、SYLVAN TOURING、SYLVAN STREAM、BM-7
SPD※2 cleat compatible（Recommended SM-SH51）※1 Size：W＝width(mm)、L＝length(mm)※2 [SPD] is registered trademark of SHIMANO INC.Specifications are subject to changed without notice
At 233 grams for the pair, the Compact is our lightest pedal. Its double-sided one-piece pedal body has a low profile made of CNC milled extruded alloy.The compact uses a single sealed bearing and bushing bearing, which not only helps keep the weight down but also keeps the pedal impact resilient.The Compact is also available with our Ezy quick release axle system. The patented Ezy system allows for safe, rapid, and tool less removal of pedals for travel, storage, or flexibility. Particularly popular as an upgrade for folding bicycles, those who take their bikes on mass transit, or travel bikes with coupler systems our Ezy system can dramatically improve ride quality while saving space.
The CT-Lite is our entry level, once piece pedal built around our cup and cone bearing system, and is offered in anodized silver or black. It is compatible with all of our cages, and has excellent quality for the low cost.
The FD-7 is a strong, alloy pedal that uses a single action for quick and easy folding. Ideal for folding bikes such as Brompton, Tern, and Dahon the FD-7 will keep you moving quickly both on and off of the bike. Featuring integrated reflectors and a semi-aggressive tooth pattern this pedal works as a great city pedal.To fold the pedals:1. Push the button in the center of petal body2. Pull or push the pedal body in the direction of your choosingTo Unfold the pedals:Push the cage down until you hear a satisfying click.487 gms
The G-6000 is one of our basic pedals, great for all around usage and very popular with Unicycle riders. This pedal is larger in length, width, and height than an average pedal. The G-6000 has a high tooth profile to provide great grip, and has a built in reflector.The G-6000 is available with a 9/16" or 1/2" thread spindle.

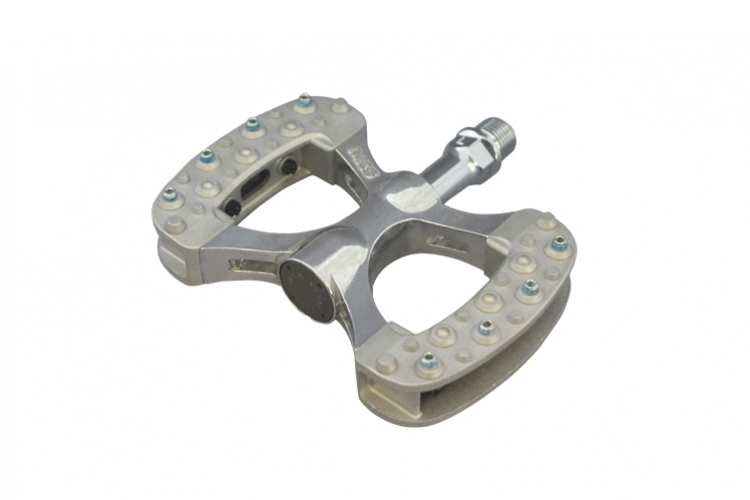

Following the success of the LAMBDA commuter pedal, MKS has continued to collaborate with the Rivendell Bicycle Works and has co-developed the GAMMA gravel and mixed surface pedal.The GAMMA is built around the proven pedal body used on the LAMBDA, paired with a new step block that has been designed in close partnership with Rivendell Bicycle Works.Retaining a similar profile shape to the LAMBDA- consisting of an elongated double-sided step block that’s narrow enough to handle corners. We have "squared off" the pedal, reduced the stack height (lowered the overall height), and added 32 replaceable anti-slip grip pins to proved an outstanding hold on a remarkably stable pedal.The GAMMA is available in two colors, shot blasted natural aluminum or shot blasted black paint.
We received many requests for a simple, high performance, plastic mountain bike pedal.The Gauss is a double-sided fiberglass reinforced plastic pedal that is available in three colors. The Gauss features 10 replaceable spikes per side spread over its 105mm x 103mm body to provide a stable and easy-to-catch pedal surface. The spikes are detachable using a 2.5mm hex wrench, so you can adjust the quantity per your preference.The Gauss is unique in our product line as it’s the only pedal we don’t assemble in house, but instead have partnered with a Taiwanese company for manufacturing and assembly. After assembly is completed, we inspect every pedal ourselves so we can confidently provide this to you with our name on it.
Spike pin for GAUSS42 spike pins for GAUSSTool used 2.5 mm hexagon wrenchnote* Size notation: W = tread width, L = tread front-back widthPlease note that specifications and prices may change or production may be discontinued due to changes in raw materials and markets.
The GRAFIGHT-X was one of the earliest pedals on the market to use Synthetic Fiberglass Resin- which we proudly proclaimed to be nearly half of the weight of an aluminum alloy pedal body while being twice as ridged and strong. While originally developed for BMX, we have found this to be an excellent pedal for e-bikes, and are making the pedal in 5 colors (White, Black, Red, Blue, and Khaki).Features of the GRAFIGHT-XX are Labyrinth dust seal that provides excellent water and dust proofing MKS’s hand adjusted cup and cone bearing system 21 molded protrusions in three shapes to provide a stable grip Design that is slightly concave toward the center of the pedal. Available with a ½" spindles
The Lambda is an extremely unique double-sided platform pedal designed in conjunction with Rivendell Bicycle Works. The Lambda design uses a somewhat traditionally alloy pedal body attached to very unconventional alloy step block, and is built around our hand adjusted cup and cone bearing system. The large “C” shaped step blocks feature a octopus sucker like dimple that provides excellent grip without shoe damaging pins. While this pedal is quite large front to back, the unique design isn’t particularly wide allowing for ample clearance while cornering. Due to the large surface area, this pedal is popular for cycling in boots and fat biking.
The Lambda Ezy Superior is an extremely unique double-sided platform pedal designed in conjunction with Rivendell Bicycle Works. The Lambda design uses a somewhat traditionally alloy pedal body attached to very unconventional alloy step block, and is built around our hand adjusted cup and cone bearing system. The large “C” shaped step blocks feature a octopus sucker like dimple that provides excellent grip without shoe damaging pins. While this pedal is quite large front to back, the unique design isn’t particularly wide allowing for ample clearance while cornering. Due to the large surface area, this pedal is popular for cycling in boots and fat biking.The patented Ezy Superior system allows for safe, rapid, and toolless removal of pedals for travel, storage, or flexibility. Particularly popular as an upgrade for folding bicycles, those who take their bikes on mass transit, or travel bikes with coupler systems our Ezy Superior system can dramatical improve ride quality while saving space.
Spike pin for ALLWAYS / SOLUTION30 pins + dedicated spannernotePlease note that specifications and prices may change or production may be discontinued due to changes in raw materials and markets.
Spike pin for GAMMAHexagon socket head set screw with 35 piecesTool used 2 mm hexagon wrenchnote* Size notation: W = tread width, L = tread front-back widthPlease note that specifications and prices may change or production may be discontinued due to changes in raw materials and markets.
Great pedals for touring or commuting. A double-sided, "SPD Style"allows for easy foot entry and exit. MKS's clipless is a cross betweenShimano's SPD and Time's hardened spring clipless. With cleat releasetension adjustment. COMES WITH Ezy BAG AND CLEATS!The simple, but genius EZ design allows for quick disconnect for addedsecurity or for travelers. Just take off your pedals and make it a bitharder for thieves to ride off with your bike. Aluminum alloy body,hardened springs with steel spindles. Re-buildable design, withadjustable bearings - unlike most "disposable" pedals out there today.Made in Japan by Mikashima. Standard 9/16" threads to fit almost allcranks. Comes with cleats and hardware.MM-Cube Cleat are NOT ShimanoSPD Compatible.
The MT-FT is one of our most basic plastic pedals, and makes for a perfect replacement pedal for most styles of causal riding. Built around our cup and cone bearing system and featuring reflectors, this maybe the last pedal you'll need to buy.
The MT-Lite is our classic mountain bike pedal, that is also excellent for pavement and gravel riders who are tough on their equipment.This pedal features a double-sided, wide-platform steel cage with 11 wide teeth and rounded corners to prevent accidental scrapes. The steel cage provides excellent strength against bashing while our alloy pedal body saves weight when compared to an all steel pedal.The MT-lite is toeclip compatible, and great a great value. Built around our cup and cone bearing system that with minimal maintenance can last a lifetime.
The Panamax features a PP resin body that has been equipped with an
elastomer grip sheet to provides both a solid grip and a soft ride.
The large 98mm x 89mm surface reduces fatigue by allowing the rider to use multiple foot positions.
Recommended for E-Bike, commuter bikes, cruisers and others.
The pedal body is made of a Black PP material, and the Surface elastomer grip sheet is grey.
Built around our proven and user serviceable Cup & Cone bearing system.
This Panamax features a reflector on both the front and back of the pedal body.
Comes with our standard 9/16th axle or with our Ezy Superior system: perfect for folding bikes, or those who need to put their bicycle in a bag to take the bicycle with them (Rinko bag).
The PB-390 is a plastic, double-sided, entry level pedal featuring built in reflectors and rounded edges that prevent scratches if the bicycle falls over or is pushed against another bicycle in a rack.The unique aspect of this pedal is that approximately 1/4th of the surface is a slightly concave platform that’s been covered with grip tape, while the remaining 3/4th's of the pedals profile has a concave, low and wide molded tread.This grip tape provides a large contact patch when wearing smooth sole shoes such as dress shoes or heels and the molded treads pair well with sneakers, making this pedal a good match for all types of shoes.
